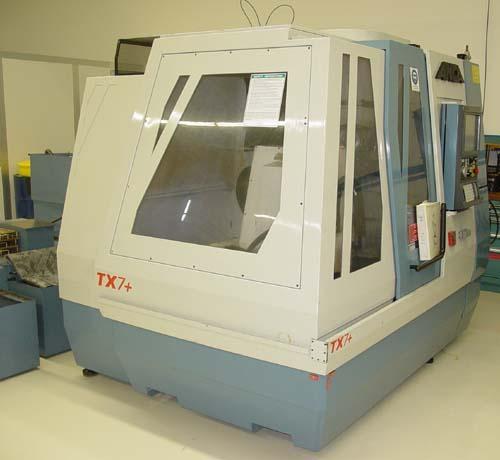

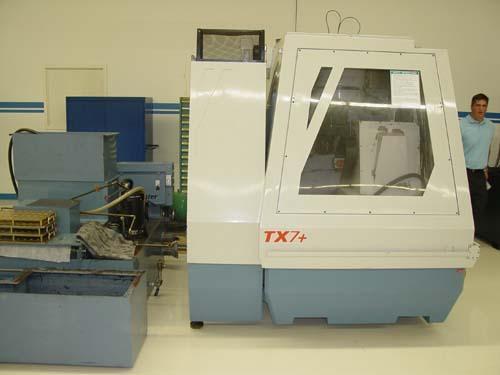

ANCA TX7+ AXIS CNC PROFILE FORM GRINDER

Stock #: P12375

Brand: ANCA
Model: TX7+
Type: Grinders, Profile
Condition: Excellent
Year: 2005

Equipped With:

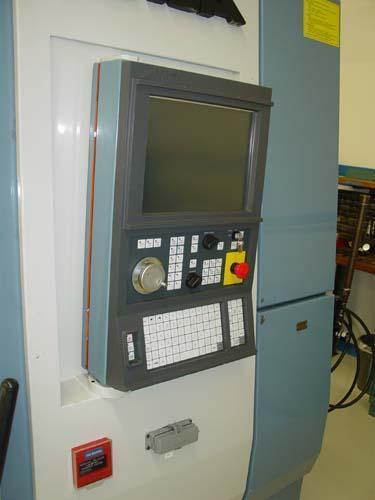

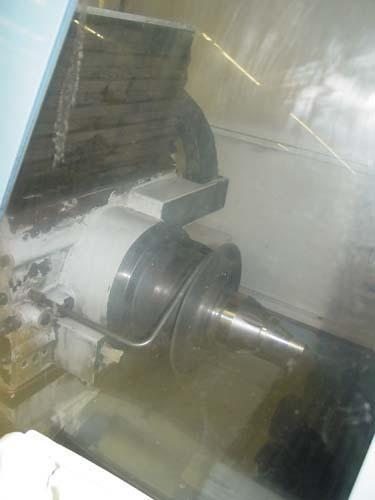

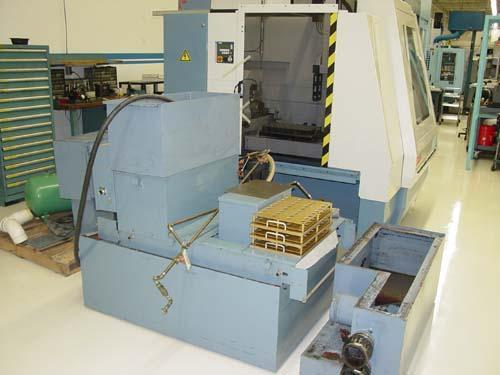

Anca CNC Control w/ CRT, BIG Plus Grinding Spindle, Automatic Changing of Parts, Grinding Wheel Changer, Coolant System.

Specifications:
CNC Control yes
Type of CNC Control Anca CNC Control
# Axis 5
X-Axis Travel 23.6"
Y-Axis Travel 16"
Z-Axis Travel 9.8"
C-Axis Rotation 264°
A-Axis Rotation 360°
Max Tool Diameter 12"
Max Tool Length 15.75"
Max Tool Weight 55 LBS
Position Feedback Resolution (X, Y, & Z Axes) .0000039"
Programming Resolution (X, Y, & Z Axes) .000039"
Position Feedback Resolution (C & A Axes) .0001°
Programming Resolution (C & A Axes) .001°
Grinding Spindle Horsepower 49 HP
Max Grinding Spindle Speed 10,000 RPM
Grinding Wheel Diameter 8"
Grinding Wheel Bore 2"
Electrics 415/3/60
Approximate Machine Dimensions 100" x 59" without Loader
Approximate Machine Height 88"
Approximate Machine Weight 17,000 LBS
Country of Origin Australia
CONDITION: Machine Appears to be in Excellent Condition !

ANCA TX7+ AXIS CNC PROFILE FORM GRINDER

ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.
  • ANCA TX-7+ CNC UNIVERSAL TOOL GRINDER, ANCA CNC Control, X=23", Y=16", Z=9.8", C=264°, A=360°, 49 HP, Low Hours, New 2005.

Share:

Print Details

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      ANCA

      Model
      TX7+

      Type
      Grinders, Profile

      Stock #
      P12375

      Condition
      Excellent

      Year
      2005

      Request a Quote Today!

      Get Started

      Equipped With

      Anca CNC Control w/ CRT, BIG Plus Grinding Spindle, Automatic Changing of Parts, Grinding Wheel Changer, Coolant System.

      Specifications
      CNC Control yes
      Type of CNC Control Anca CNC Control
      # Axis 5
      X-Axis Travel 23.6"
      Y-Axis Travel 16"
      Z-Axis Travel 9.8"
      C-Axis Rotation 264°
      A-Axis Rotation 360°
      Max Tool Diameter 12"
      Max Tool Length 15.75"
      Max Tool Weight 55 LBS
      Position Feedback Resolution (X, Y, & Z Axes) .0000039"
      Programming Resolution (X, Y, & Z Axes) .000039"
      Position Feedback Resolution (C & A Axes) .0001°
      Programming Resolution (C & A Axes) .001°
      Grinding Spindle Horsepower 49 HP
      Max Grinding Spindle Speed 10,000 RPM
      Grinding Wheel Diameter 8"
      Grinding Wheel Bore 2"
      Electrics 415/3/60
      Approximate Machine Dimensions 100" x 59" without Loader
      Approximate Machine Height 88"
      Approximate Machine Weight 17,000 LBS
      Country of Origin Australia
      CONDITION: Machine Appears to be in Excellent Condition !
