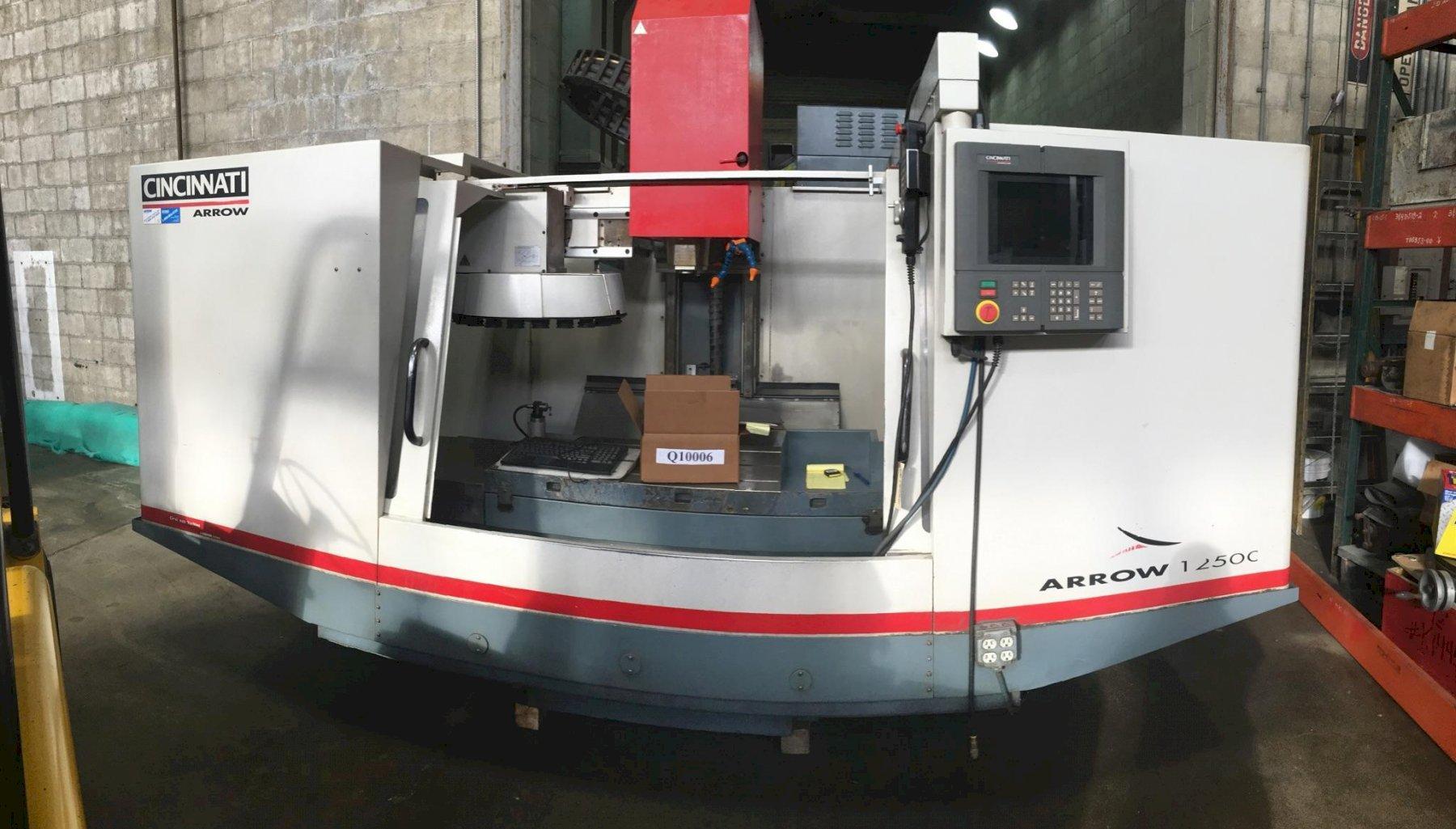

CINCINNATI ARROW-1250C CNC VERTICAL MACHINING CENTER

Stock #: Q10006

Brand: CINCINNATI
Model: ARROW-1250C
Type: Machining Centers, Vertical
Condition: Excellent
Year: 1998

Equipped With:


CNC Control……………. Cincinnati Acramatic 2100 Siemens CNC<br>
# Axis……………… 3<br>
Table-L................................. 54"<br>
Table-W................................. 24"<br>
Max Table Load Capacity................................... 2,750 LBS<br>
Longitudinal Travel (X-Axis).......................... 50"<br>
Cross Travel (Y-Axis)................................. 20"<br>
Vertical Travel (Z-Axis).............................. 22" <br>
Feed Rates (X,Y,Z Axis)............................... .1 - 590 in/min.<br>
Rapid Traverse Rate (X,Y & Z-Axis).................... 945 IPM<br>
Spindle Power.................................... 12 HP<br>
Spindle Speed Range................................... 60 - 10,000 RPM<br>
Spindle Taper......................................... CAT-40<br>

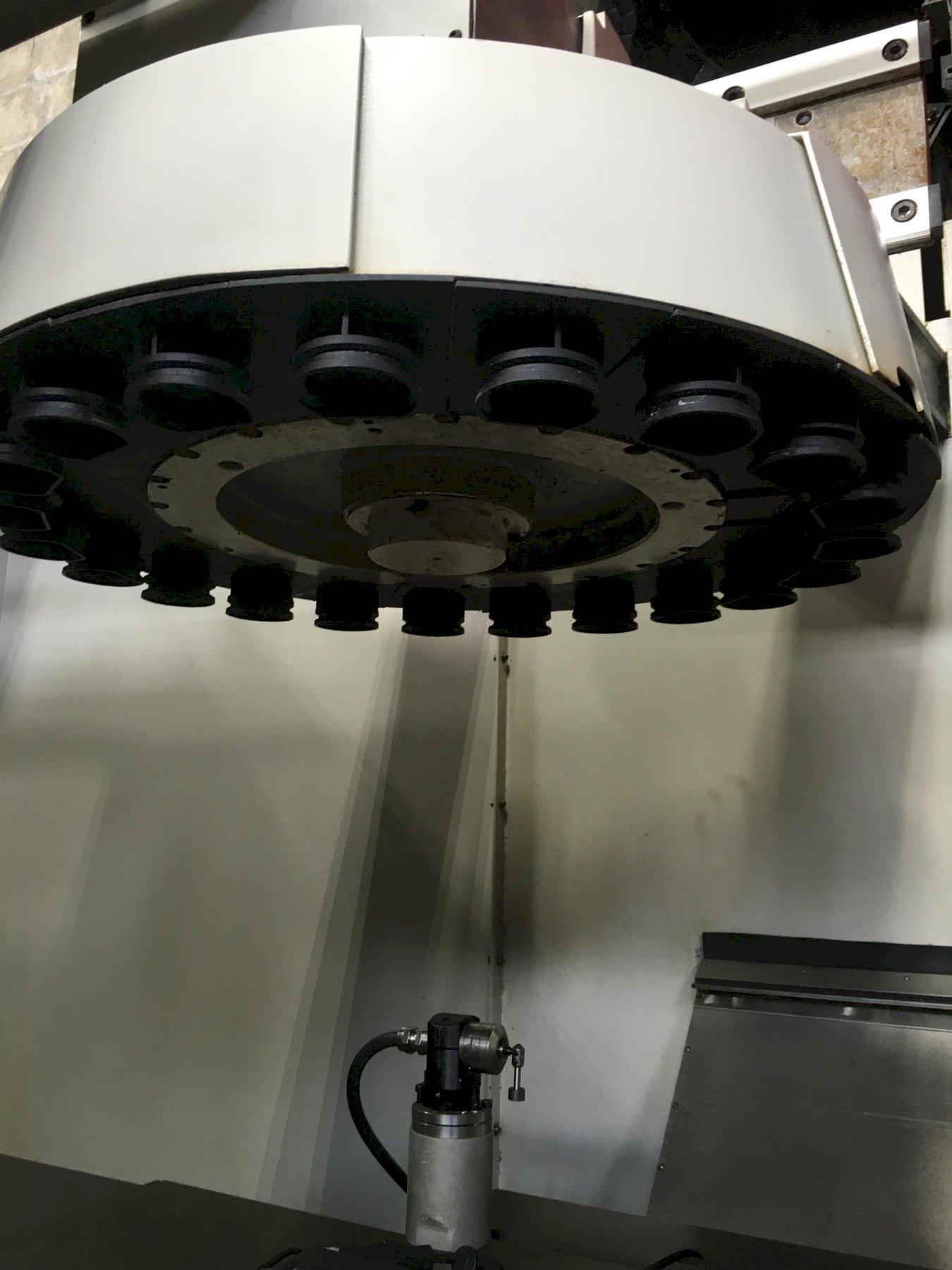

Automatic Tool Changer Capacity (ATC)................................. 21<br>
Approximate Machine Dimensions.................. 145" x 84" x 109"<br>
Approximate Machine Weight............................ 11,025 LBS


CONDITION: This Machine Appears to be in Excellent Condition !
