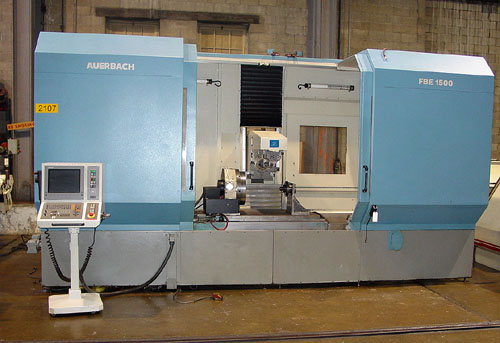

AUERBACH FBE 1500 CNC HORIZONTAL PRODUCTION MILL

Stock #: P12118

Brand: AUERBACH
Model: FBE 1500
Type: Machining Centers, Horizontal
Condition: Excellent
Year: 2001

Equipped With:

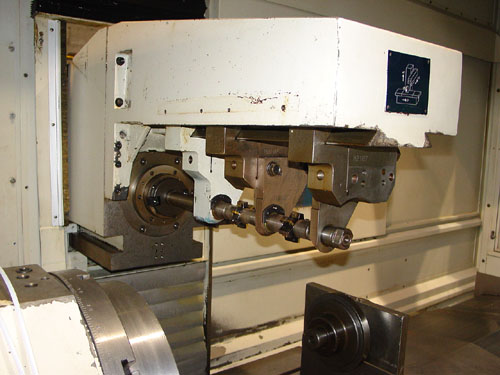

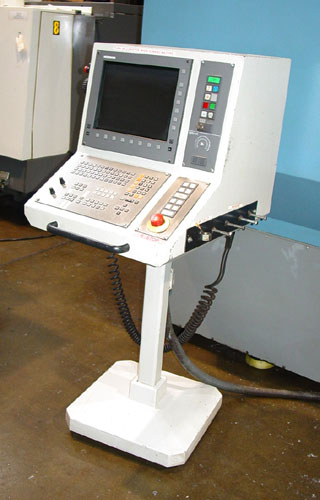

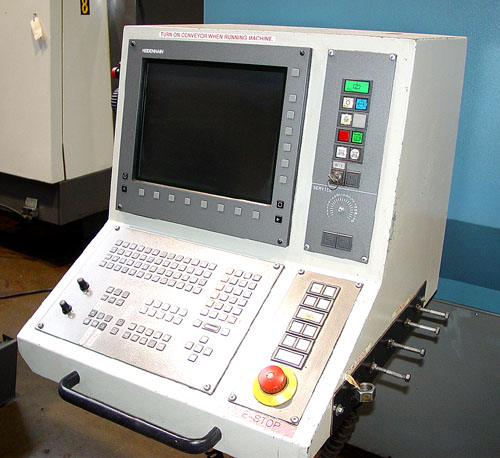

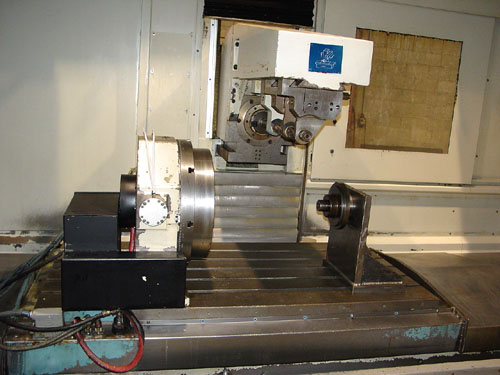

Heidenhain TNC-426 CNC Control w/ Color CRT, 16" Programmable CNC Indexer, Overarm w/ Arbor Supports, Centralized	Lubrication, Chip Conveyor, Coolant System.

 Note:  This Machine is a Quality, German Built CNC Production Mill w/ a Replacement Price Exceeding $350,000.

SPECIFICATIONS:
Longitudinal Travel (X Axis)............................ 60"
Vertical Travel (Y Axis)................................ 40"
Cross Travel (Z Axis)................................... 24"

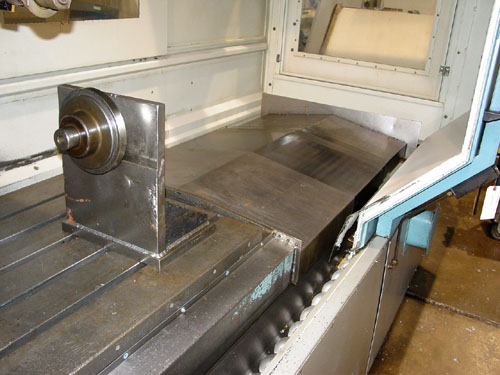

Table Working Surface (T-Slotted)....................... 32" x 64"
Table Load Capacity..................................... 9,000 LBS

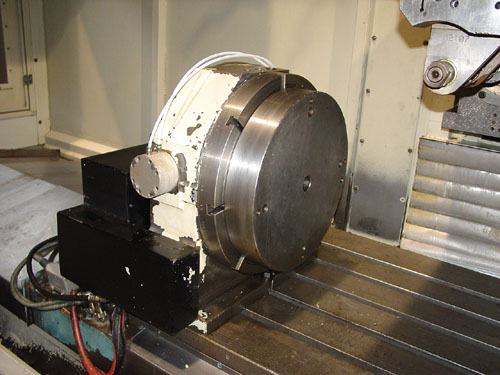

Rotary Table Size....................................... 16"
Feed Rate, All Axes..................................... .03 to 236 IPM
Rapid Traverse, All Axes................................ 590 IPM
Spindle Horsepower...................................... 40 HP
Spindle Speed, Range.................................... 30 - 2500 RPM
Spindle Taper........................................... 50
Electrics .............................................. 460/3/60
Approximate Machine Dimensions.......................... 290" x 191"
Approximate Machine Height.............................. 125"
Approximate Machine Weight.............................. 30,000 LBS

CONDITION:  Machine Appears to be in Excellent Condition!
