Stock #: P12244
Brand: OKUMA
Model: GENOS M560-V
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Like New
Year: 2012

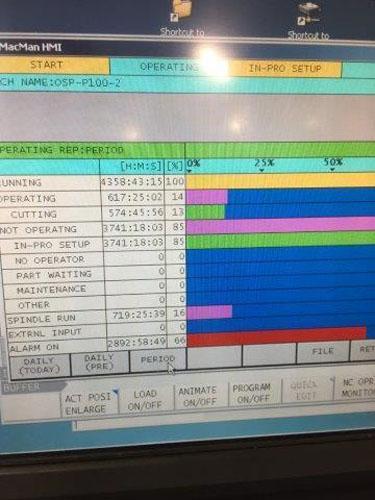

Okuma OSP P-200M CNC Control, Tsudakoma TN-161 Tilt/Rotate 4th & 5th Axis CNC Table, Thermal Active Stabilizer TAS-A & TAS-C, (8) Sets of External M-Codes, Twin Chip Channel w/ Coil Conveyors, Prep for Coolant Thru Spindle, MACMAN, LNS Turbo Chip Conveyor, Coolant System.
NOTE: New Replacement Cost is in Excess of $250,000. Machine was Bought for One Particular Job, Job was Cancelled Right After Installations, the Machine has Only 12 Spindle Hours.
Specifications: |
|
|---|---|
| CNC Control | yes |

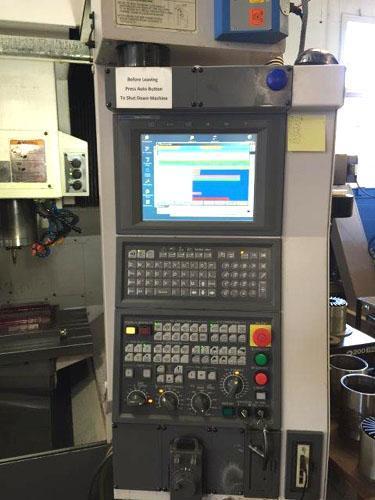

| Type of CNC Control | Okuma OSP P-200M CNC Control |

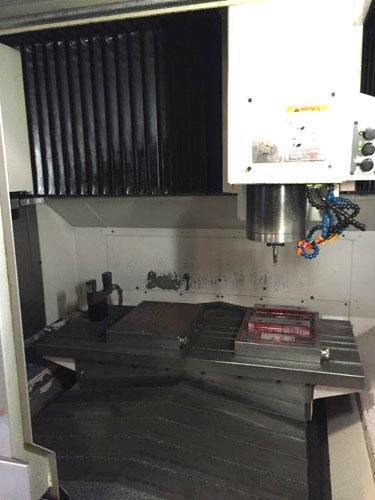

| Table Working Surface | 51" x 22" |
| Table Load Capacity | 1,980 LBS |
| # Axis | 5 |
| X-Axis (Longitudinal Travel) | 41" |
| Y-Axis (Cross Travel) | 22" |
| Z-Axis (Vertical Travel) | 18" |
| Feed Rates (All Axes) | .04 - 1260 IPM |
| Rapid Traverse Rate (X & Y Axes) | 1575 IPM |
| Rapid Traverse Rate (Z Axis) | 1262 IPM |
| Spindle Horsepower | 30 HP |
| Spindle Speeds Range | 50 - 12,000 RPM |
| Spindle Taper | CAT 40 Big Plus |

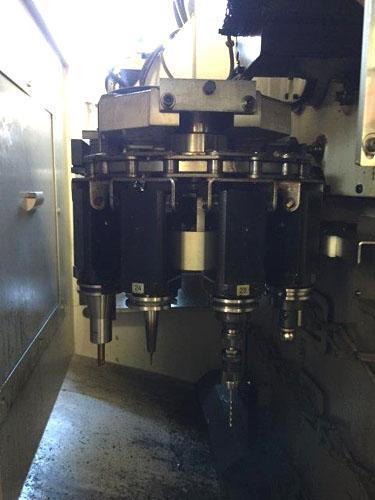

| Automatic Tool Changer Capacity (ATC) | 32 |
| Approximate Machine Dimensions | 122" x 98" |
| Approximate Machine Height | 109" |
| Approximate Machine Weight | 20,000 LBS |
CONDITION: This Machine Appears to be in Same as New Condition! Machine has Only 12 Spindle Hours!
