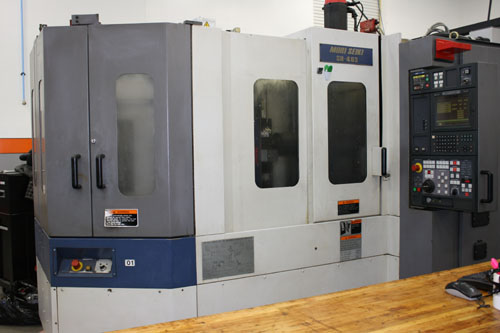

Stock #: P12242
Brand: MORI SEIKI
Model: SH-403
Type: Machining Centers, Horizontal
Condition: Excellent
Year: 2001
Mori Seiki MSG-501 (Fanuc 18M) CNC Control w/ CRT, Thru the Spindle Coolant, (2) 15.7" Square Pallets w/ 1° Indexing, 40-Position Automatic Tool Changer, RS-232 Port, Full Coolant Enclosure, Chip Conveyor, High Pressure Coolant Pro + Performance, Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Mori Seiki MSG-501 (Fanuc 18M) CNC Control |
| # Axis | 3 |
| # Pallets | 2 |
| Pallet Dimensions | 15.7"x 15.7" |
| Number of Index Positions | 360 |
| Max Pallet Load | 1100 LBS |
| X-Axis (Longitudinal Table Travel) | 22" |
| Y-Axis (Vertical Travel) | 20" |
| Z-Axis (Spindle Travel) | 20" |
| Feed Rate, All Axes | .04-1600 in/min. |
| Rapid Traverse Rate, All Axes | 1600 IPM |
| Spindle Horsepower | 30 HP |
| Spindle Taper | #40 CAT |
| Spindle Speed Range | 30 - 12,000 RPM |
| Coolant Through Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 40 |
| Approximate Machine Dimensions | 160" x 112" |
| Approximate Machine Height | 100" |
| Approximate Machine Weight | 23,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Brand
MORI SEIKI
Model
SH-403
Type
Machining Centers, Horizontal
Stock #
P12242
Condition
Excellent
Year
2001
Equipped With |
|---|
|
Mori Seiki MSG-501 (Fanuc 18M) CNC Control w/ CRT, Thru the Spindle Coolant, (2) 15.7" Square Pallets w/ 1° Indexing, 40-Position Automatic Tool Changer, RS-232 Port, Full Coolant Enclosure, Chip Conveyor, High Pressure Coolant Pro + Performance, Coolant System. |
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Mori Seiki MSG-501 (Fanuc 18M) CNC Control |
| # Axis | 3 |
| # Pallets | 2 |
| Pallet Dimensions | 15.7"x 15.7" |
| Number of Index Positions | 360 |
| Max Pallet Load | 1100 LBS |
| X-Axis (Longitudinal Table Travel) | 22" |
| Y-Axis (Vertical Travel) | 20" |
| Z-Axis (Spindle Travel) | 20" |
| Feed Rate, All Axes | .04-1600 in/min. |
| Rapid Traverse Rate, All Axes | 1600 IPM |
| Spindle Horsepower | 30 HP |
| Spindle Taper | #40 CAT |
| Spindle Speed Range | 30 - 12,000 RPM |
| Coolant Through Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 40 |
| Approximate Machine Dimensions | 160" x 112" |
| Approximate Machine Height | 100" |
| Approximate Machine Weight | 23,000 LBS |
| CONDITION: This Machine Appears to be in Excellent Condition ! |
