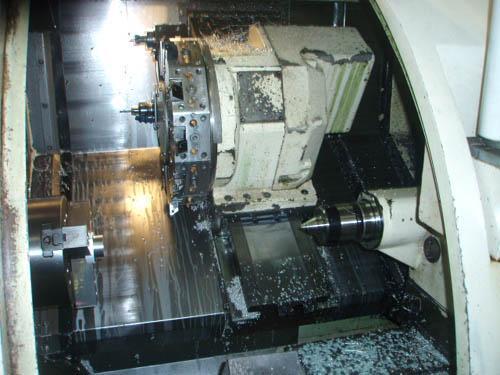

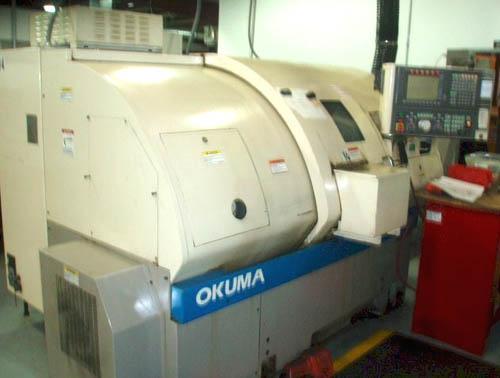

OKUMA CROWN CNC TURNING CENTER

Stock #: P12222

Brand: OKUMA
Model: CROWN
Type: Lathes, CNC
Condition: Excellent
Year: 2000

Equipped With:

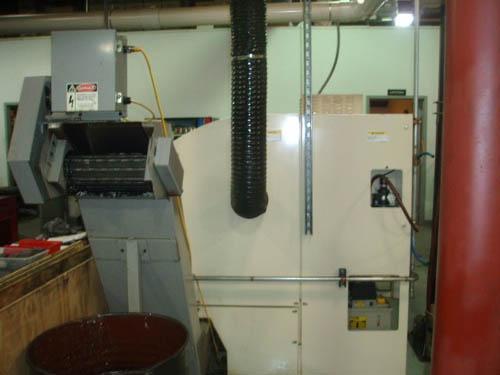

Okuma OSP U10L CNC Control w/CRT, IGF Programming, Barfeed Interface, Parts Catcher, Load Monitor B, 8" 3-Jaw Power Chuck, Linear and Circular Interpolation, Bed Mounted	 Programmable Tailstock, Auto Backlash Compensation, Auto Lube, Work Light, Coolant System, and Chip Conveyor.

SPECIFICATIONS:
Max Swing Over Saddle................................... 15.75"
Maximum Turning Diameter................................ 10.63"
Maximum Turning Length.................................. 19.68"
Standard Chuck Size..................................... 8"
Cross Travel (X-Axis)................................... 6.89"
Longitudinal Travel (Z-Axis)............................ 19.69"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 944 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.20"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 65-4200 RPM
Spindle Horsepower...................................... 20 HP
Electrics............................................... 460/220/3/60
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,900 LBS

CONDITION: Machine Appears to be in Excellent Condition !
