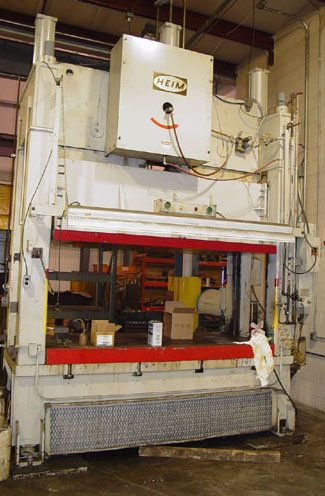

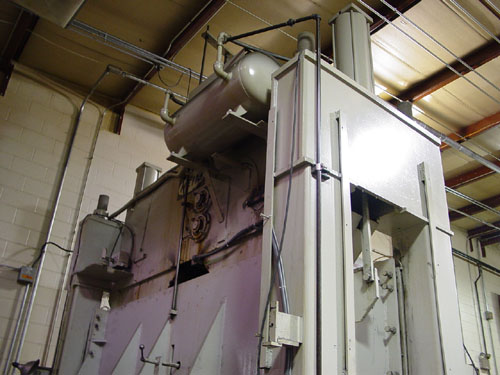

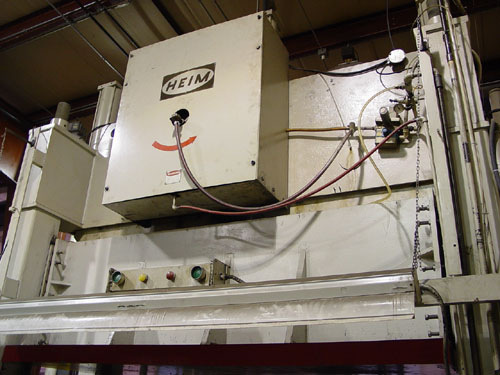

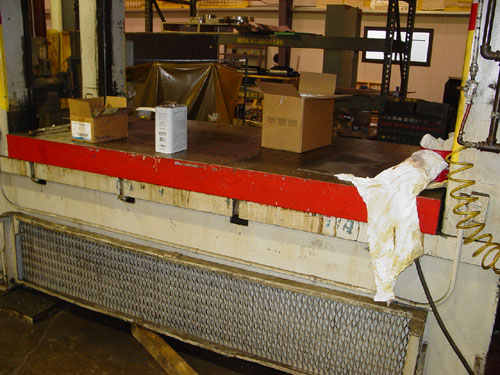

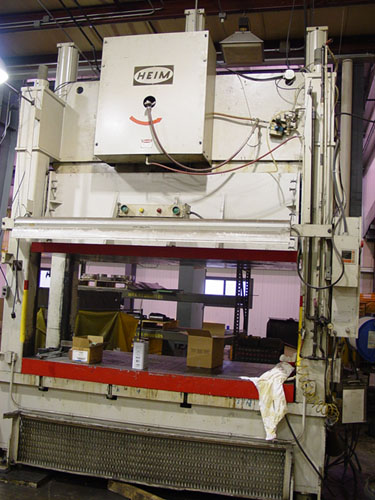

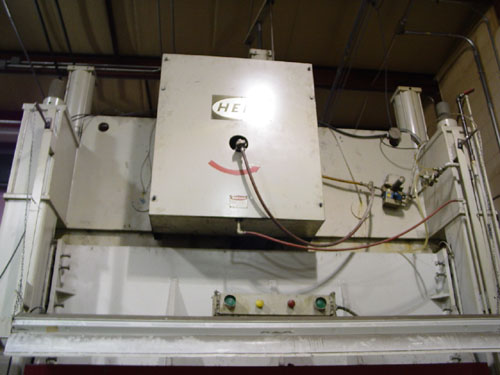

300 TON HEIM STRAIGHT-SIDE PRESS

Stock #: P12220

Brand: HEIM
Model: S300x48x102
Type: Presses, Straight Side
Condition: Excellent
Year: 1975

Equipped With:



Flush Floor Design, DRO for Ram Adjustment, Overload Strain Gauges, Cushion Under Bolster, Motorized Ram Adjustment, Air Counterbalance, Trabon Lube Pump.

SPECIFICATIONS:
Tonnage Capacity..................................... 300 Ton
Stroke Length........................................ 12"
Shut Height to Bed................................... 21"
Slide Adjustment,.................................... 6"
Slide Area, R-L x F-B................................ 102" x 48"
Opening in Bed, R-L x F-B............................ 102" x 48"
Bolster Area, R-L x F-B.............................. 102" x 48"
Bolster Thickness.................................... 6"
Strokes Per Minute................................... 18 SPM
Die Space with Bolster............................... 20" - 26"
Electrics............................................ 480/240/3/60
Approximate Machine Dimensions....................... 130" x 85"
Approximate Machine Height........................... 216"
Approximate Machine Weight........................... 44,000 Lbs.

CONDITION:  Machine was used as a Die Try Out Press, Never Used in
Production, and Appears to be in Excellent Condition!
