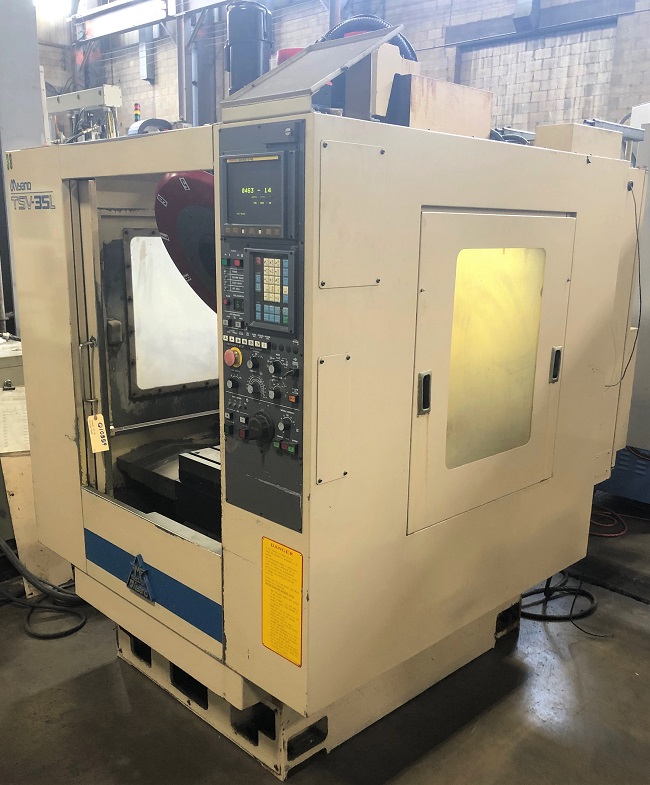

Miyano TSV-35L CNC Drill / Tap Vertical Machining Center

Stock #: Q10359

Brand: MIYANO
Model: TSV-35L
Type: Machining Centers, Vertical
Condition: Used
Year: 1995

Equipped With:

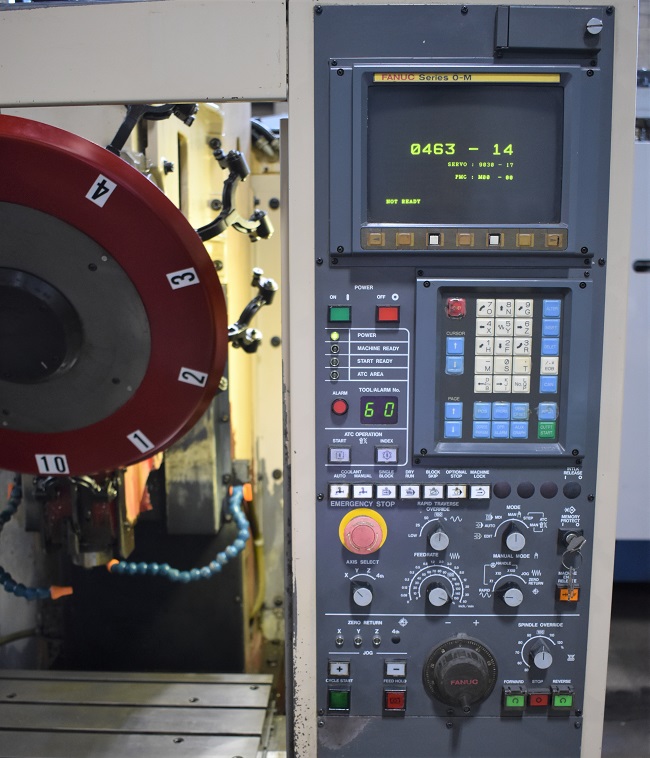

Fanuc 0-M CNC control, RS-232 Port, Inch / Metric Conversion, Heavy Duty Geared Head, 5,000 RPM Spindle, 10 Station Tool Changer, BT-40 Spindle Taper, Coolant System.

SPECIFICATIONS:
Table Size............................................. 24" x 15.7"
Table Load............................................. 440 lbs
X-Axis Travel.......................................... 19.6"
Y- Axis Travel......................................... 14.9"
Z- Axis Travel......................................... 9.8"
Rapid Traverse X & Y................................... 945"/min
Rapid Traverse Z....................................... 787"/min
Distance From Table To Spindle Nose.................... 9.8"-19.6"
Max Spindle RPM........................................ 5,000 RPM
Spindle Motor.......................................... 7.5 HP
Spindle Taper.......................................... BT-40
Tool Changer Stations.................................. 10
Tool Change Speed...................................... 1.8 Sec
Electrics.............................................. 230V/60/3
Approximate Machine Dimensions......................... 100" x 80"
Approximate Machine Height............................. 98"
Approximate Machine Weight ............................ 5,300 lbs
