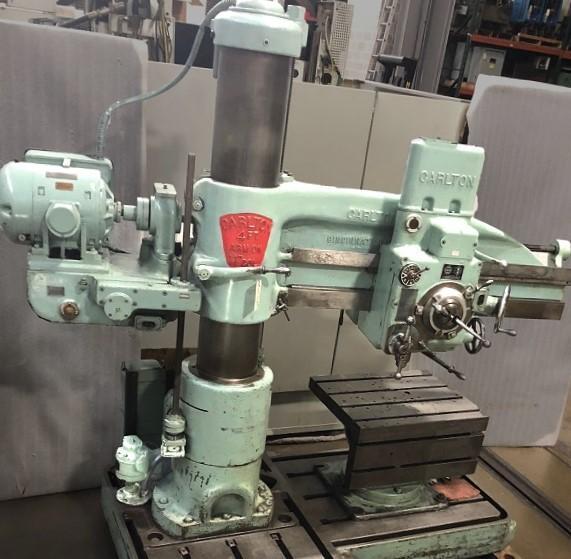

Stock #: Q10299
Brand: CARLTON
Model: 1A
Type: Drills, Radial
Condition: Good
Year: 1942

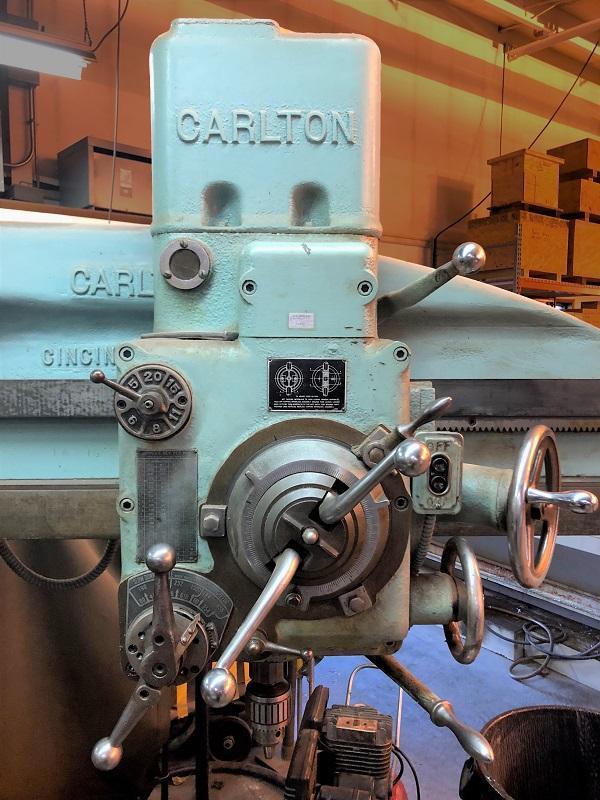

Power Arm Elevation, Power Column Clamping on Arm, Power Head Clamping, Rapid Traverse to Head, Tapping, 20" x 20" x 22-1/2" Universal Box Table, Built in Coolant System.
Specifications: |
|
|---|---|
| Arm Length | 4' |
| Column Diameter | 11" |
| Working Surface of Base (T-Slotted) | 36" x 54" |
| L-Base Extension | 31" x 42" |
| Vertical Spindle Travel in Head | 12" |
| Vertical Arm Travel on Column | 22" |
| Horizontal Head Travel on Arm | 39" |
| Max Distance Spindle to Base | 55" |
| Min Distance Spindle to Base | 14-3/4" |
| Max Distance Face of Column to Spindle | 48" |
| Min Distance Face of Column to Spindle | 9" |
| Spindle Taper | #4 MT |
| Spindle Diameter | 2-1/2" |
| # Spindle Speeds | 12 |
| Spindle Speed Range | 60 - 1,500 RPM |
| # Spindle Feeds | 6 |
| Spindle Feeds Range | .006-.025 IPR |
| Motor Horsepower | 5 HP |
| Electrics | 220/440/3/60 |
| Height of Base | 8" |
| Approximate Machine Dimensions (with L-Base) | 85" x 93" |
| Approximate Machine Height | 107" |
| Approximate Machine Weight | 8,400 LBS |
CONDITION: This Machine Appears to be in Good Condition !
