Stock #: Q10426
Brand: SWI
Model: 1630SX
Type: Lathes, CNC
Condition: Very Good
Year: 2010

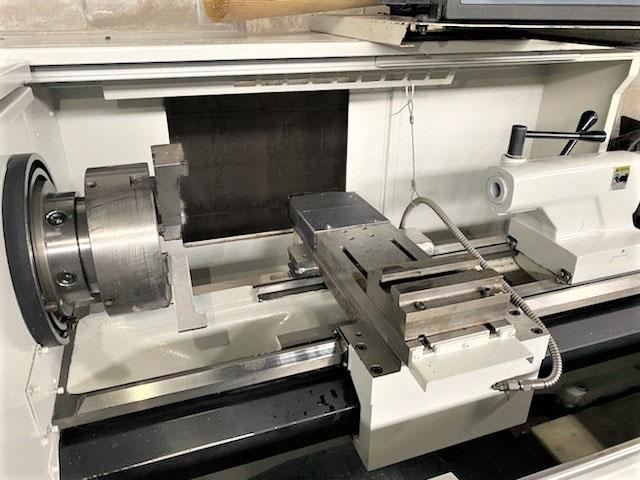

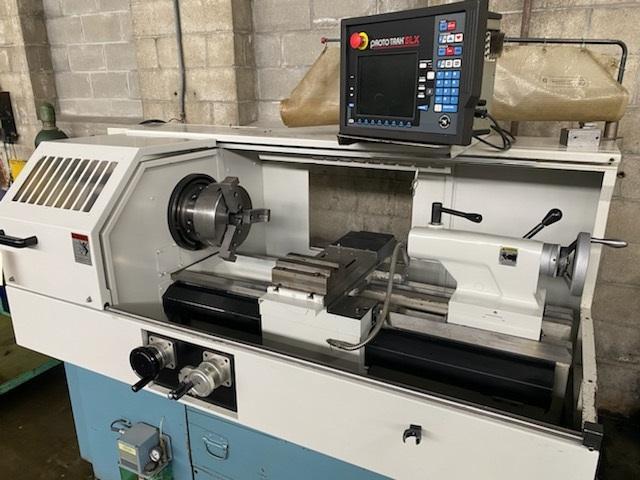

SouthWest Industries SLX CNC Control, Dual Electronic Handwheel Controls w/ Jog Stick, Operate Manual or CNC Controlled, (2) USB Port, Teach Mode, Inch/Metric Threading, 10" 3-Jaw Chuck, Manual Tailstock, Central Automatic Lube System,11 Gallon Coolant System with Chip Pan, Extra Homebuilt Guarding, Manuals.
Specifications: |
|
|---|---|
| CNC Control | yes |

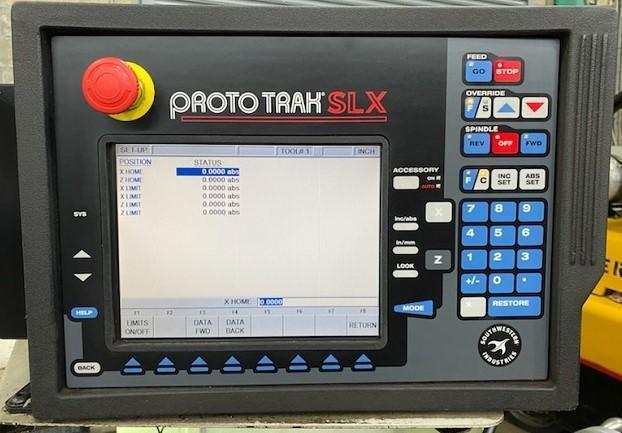

| Type of CNC Control | SouthWest Industries SLX CNC Control |
| Max Swing Over Bed | 16" |
| Max Swing Over Cross Slide | 8.6" |
| Chuck Size | 10" |
| Max Distance Between Centers | 30" |
| X-Axis (Cross Travel) | 9.6" |
| X-Axis Rapid Traverse Rate | 100 IPM |
| Z-Axis Rapid Traverse Rate | 150 IPM |
| Spindle Nose | D1-6 |
| Spindle Thru Hole | 2.12" |
| Spindle Speed Range | 150-2500 RPM |
| Spindle Horsepower | 7.5 HP |
| Tailstock Quill Taper | #6 MT |
| Tailstock Quill Travel | 603" |
| Control Electrics | 1/60/110V |
| Machine Electrics | 3/60/220V |
| Approximate Machine Dimensions | 87" x 45" |
| Approximate Machine Height | 67" |
| Approximate Machine Weight | 3,200 LBS |
CONDITION: Machine Appears to be in Very Good Condition!
