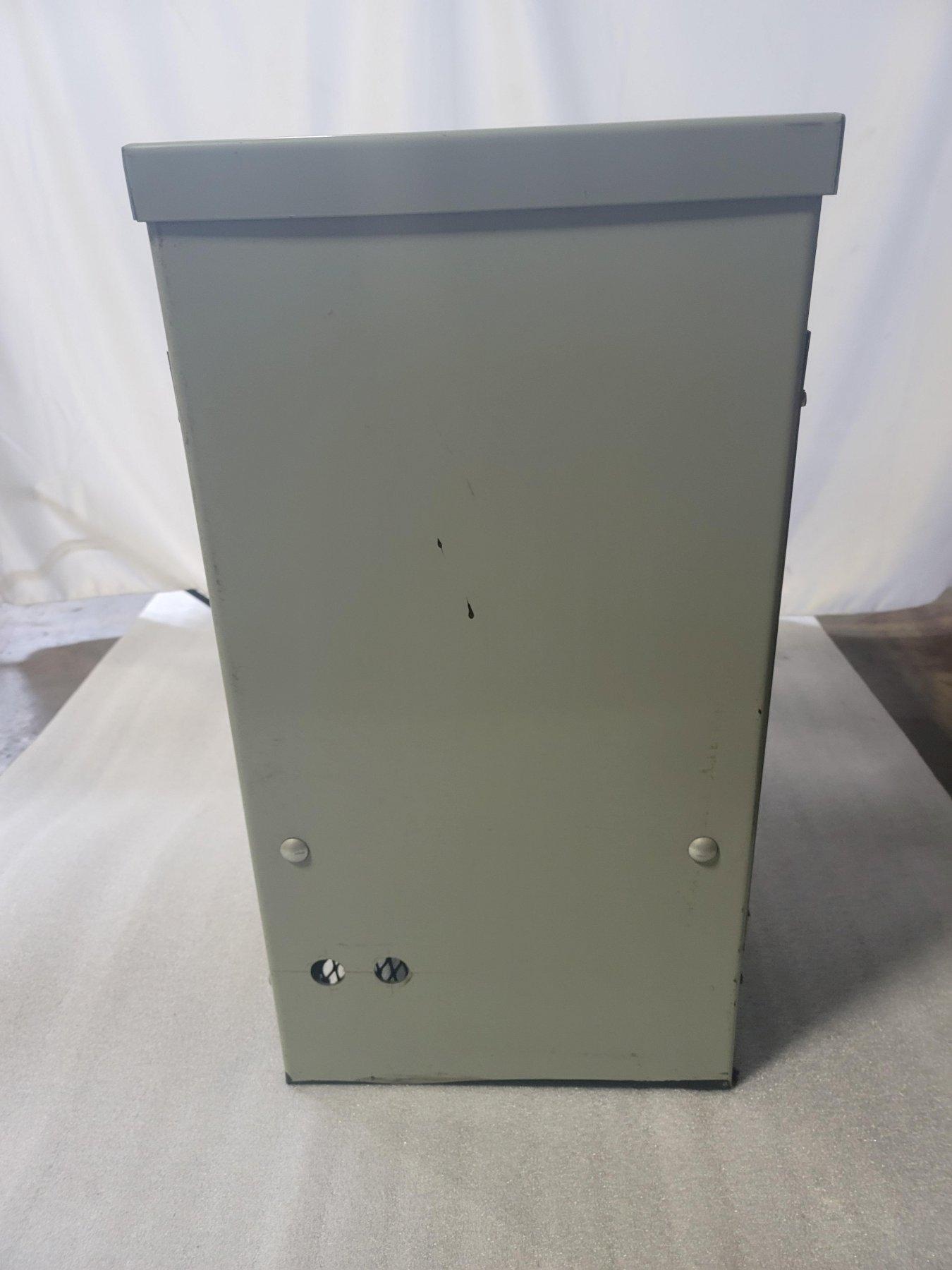

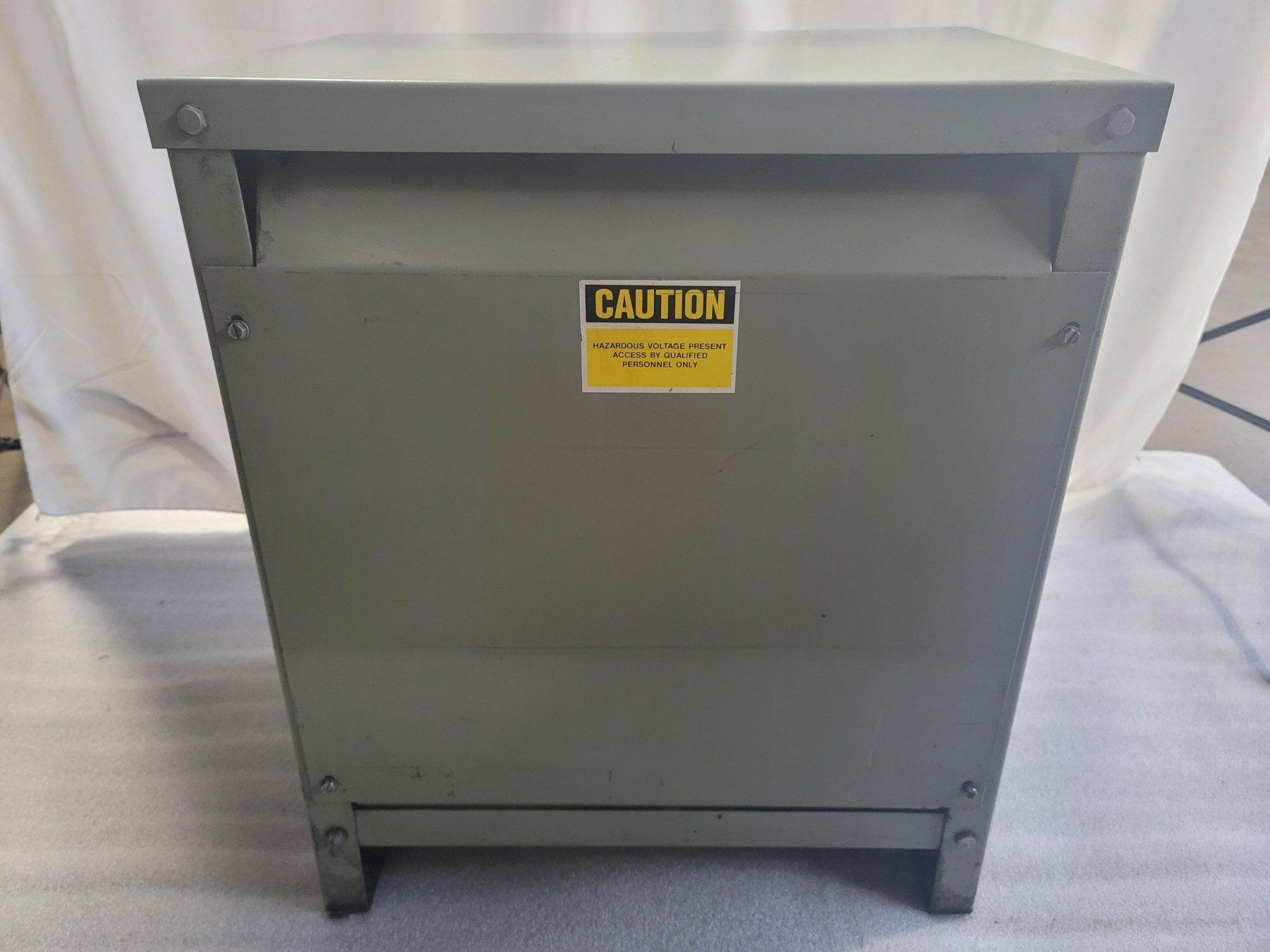

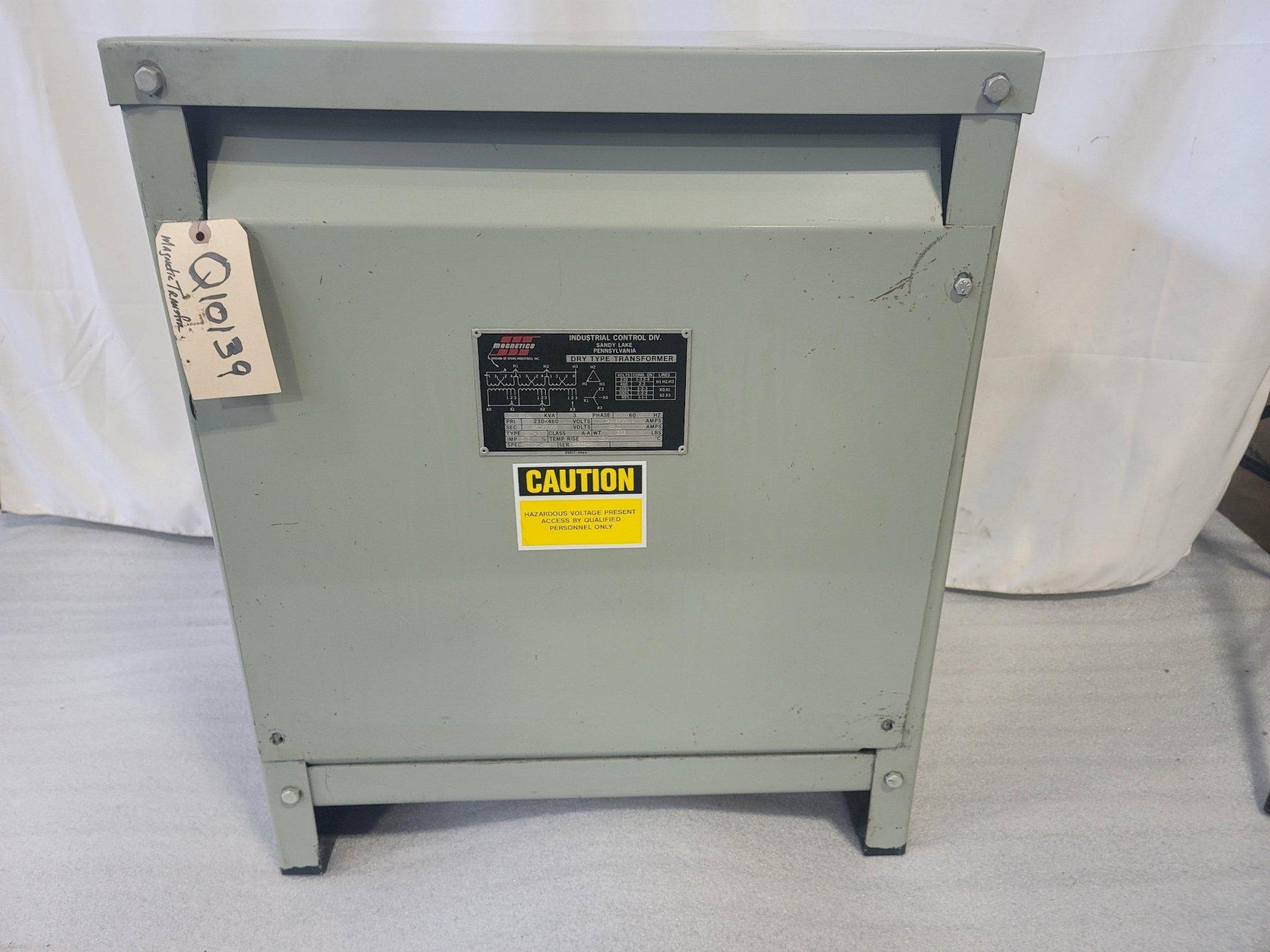

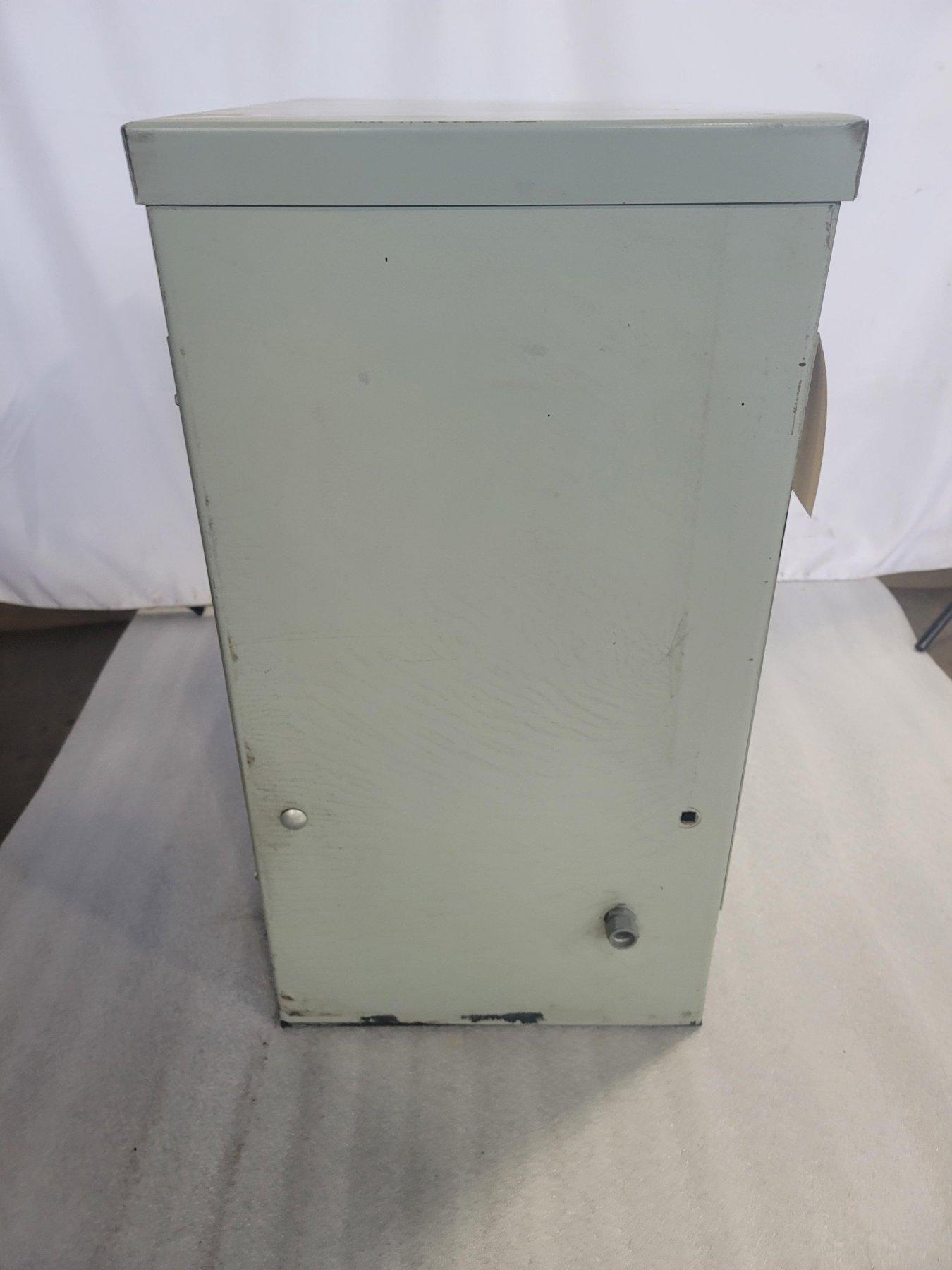

Stock #: Q10139
Brand: MAGNETICS
Model: 20 KVA
Type: Transformers
Condition: Excellent
Year: Not Specified

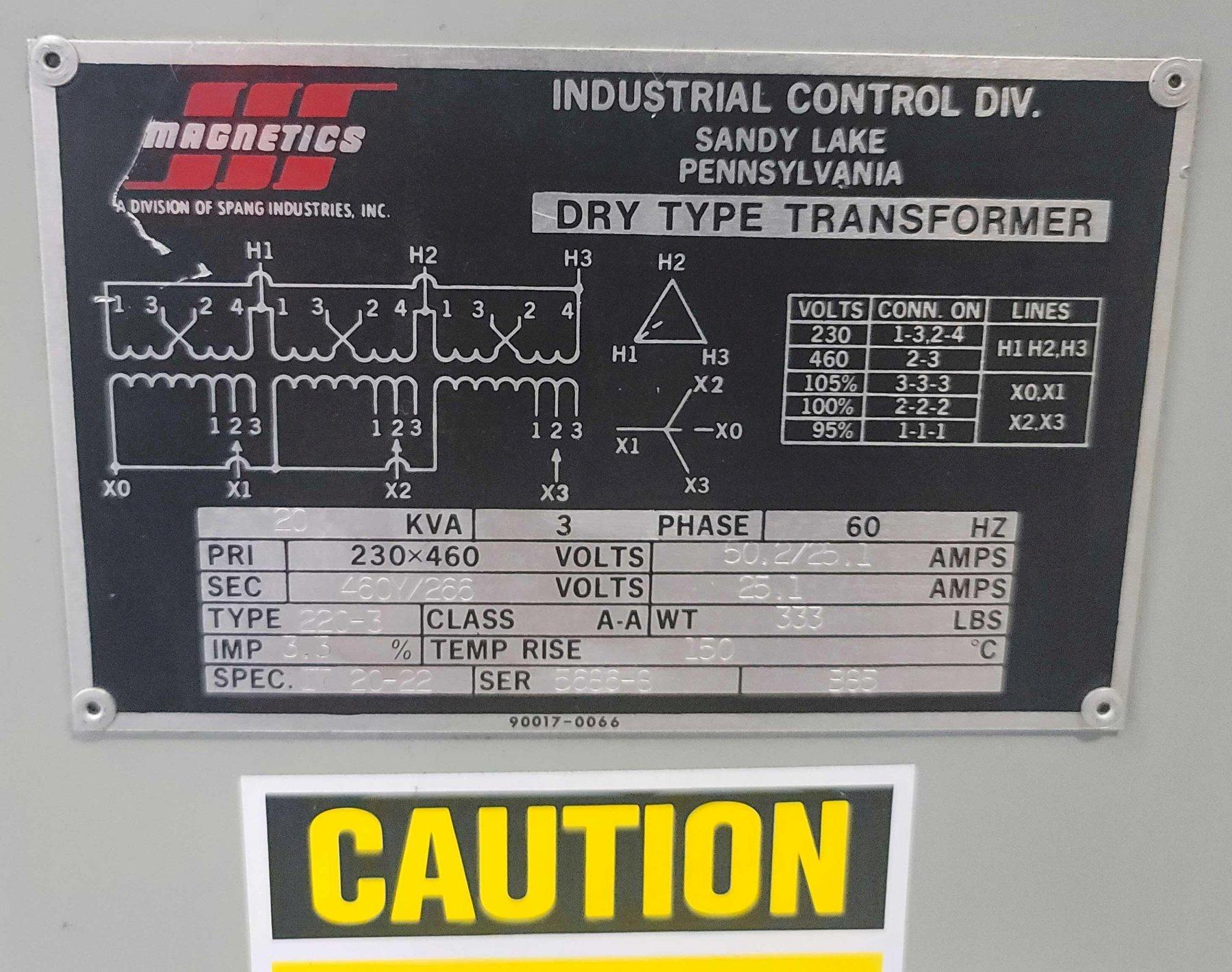

Specifications: |
|
---|---|
Phase - Electrical | 3 Phase |
Primary Input Voltage | 230 x 460 V |
Secondary Output Voltage | 460Y/266 V |
VA Rating | 20 kVA |
NEMA Class | AA Dry Type |
Frequency | 60 Hz |
Temp Rise | 150° C |
% Impedance | 3.3% |
Enclosure Type | 220-3 |
Approximate Dimensions | 23" x 15" |
Approximate Height | 28-1/2" |
Approximate Weight | 341 LBS |
CONDITION: Transformer Appears to be in Excellent Condition.
