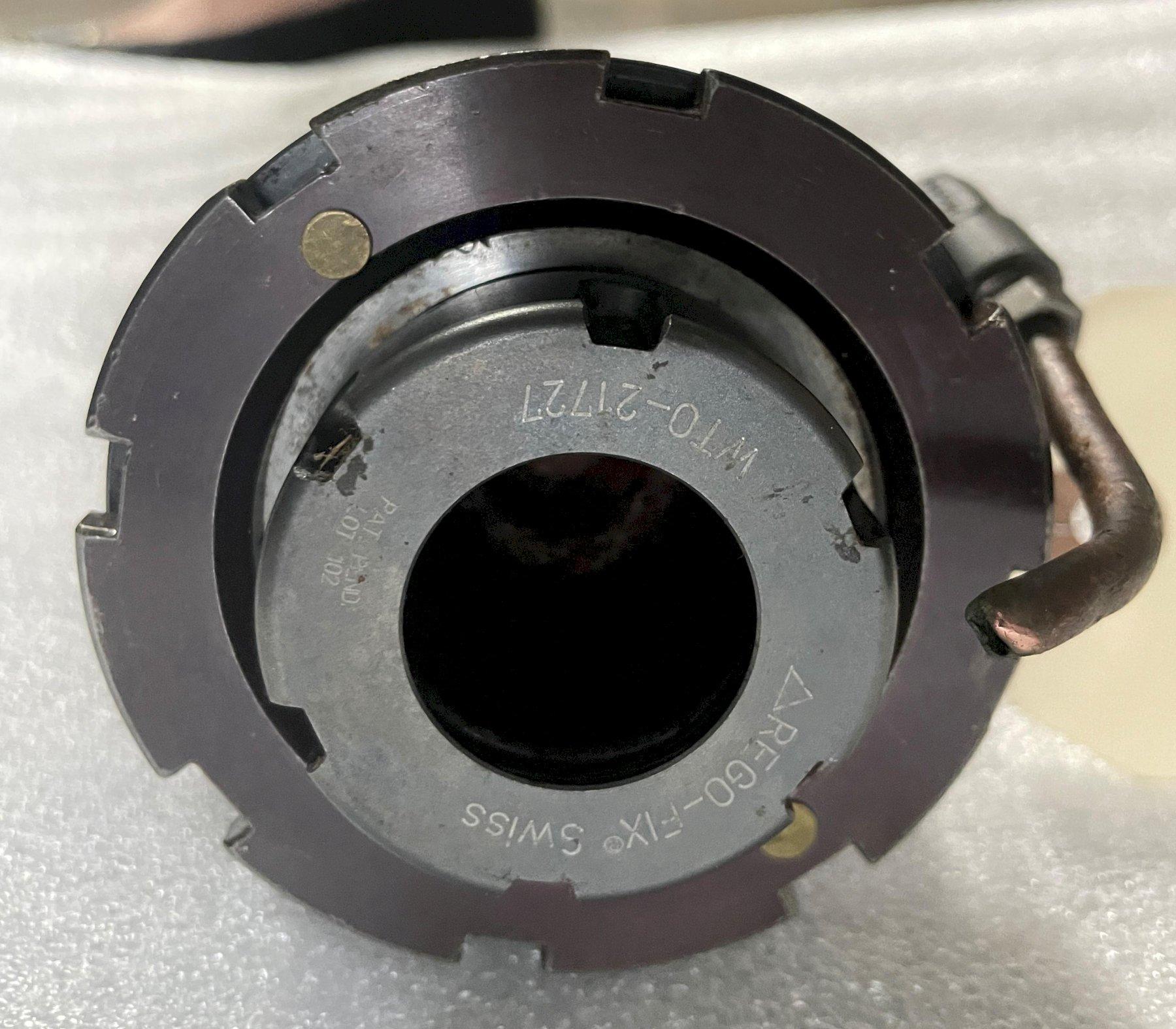

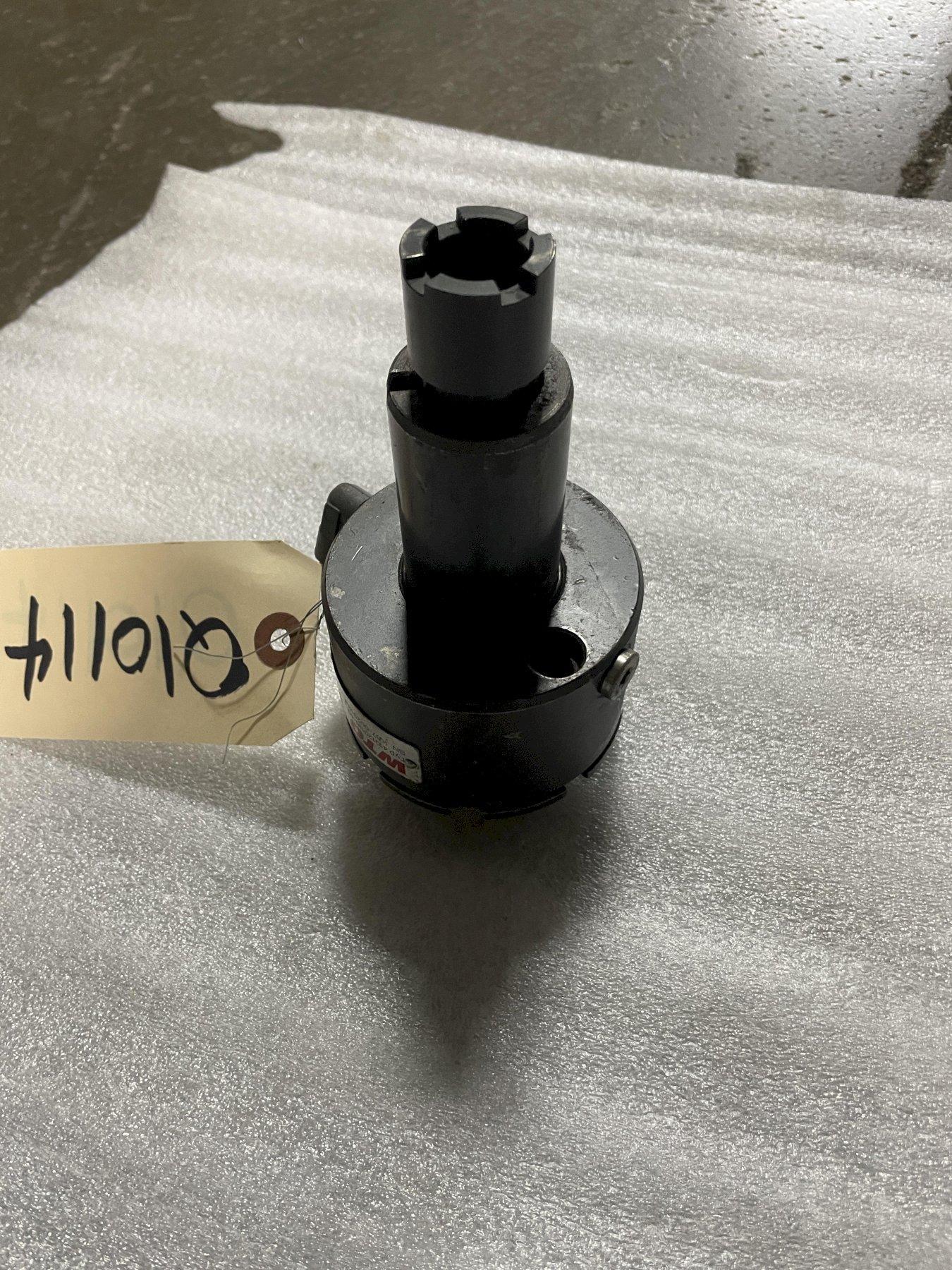

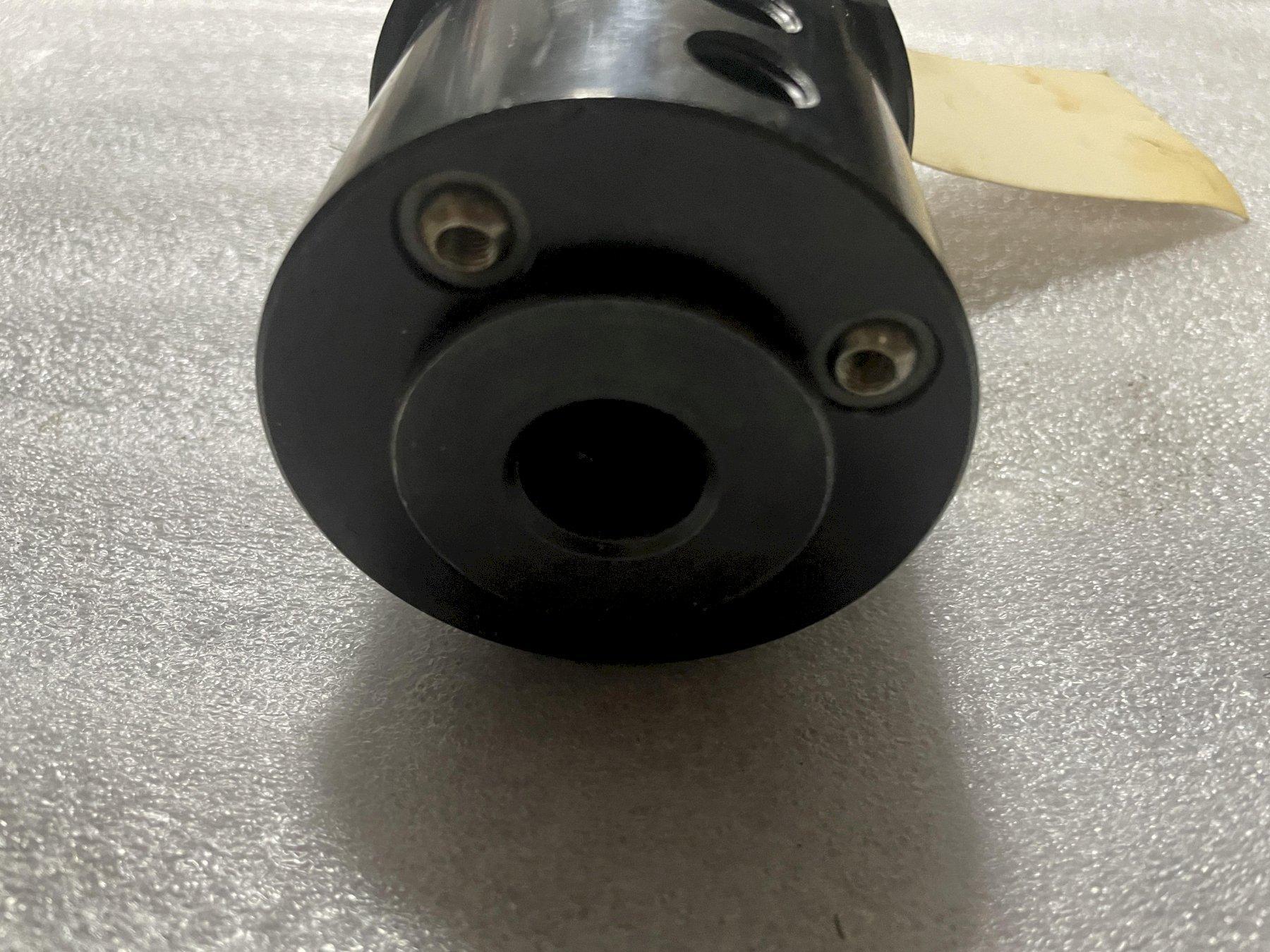

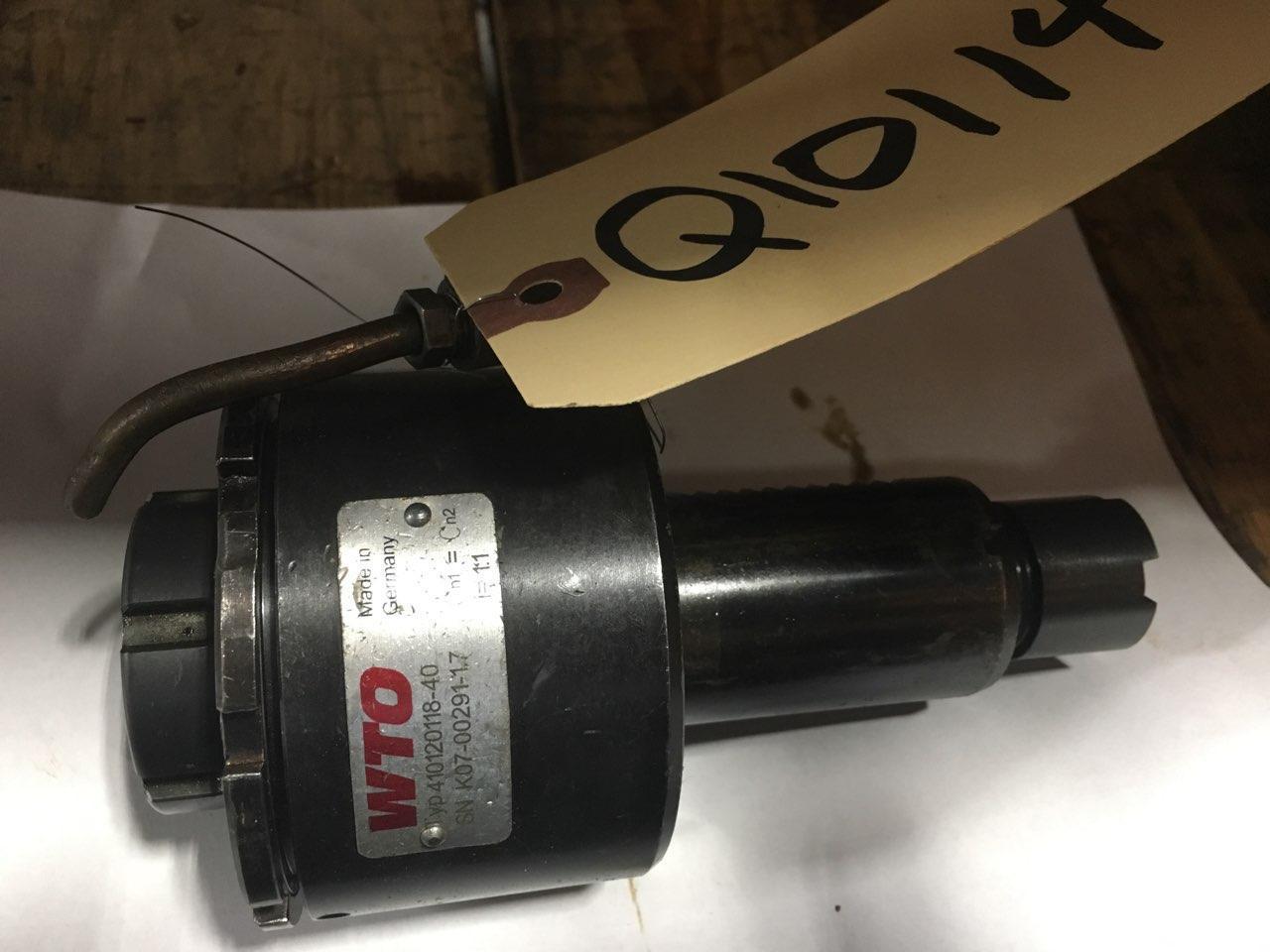

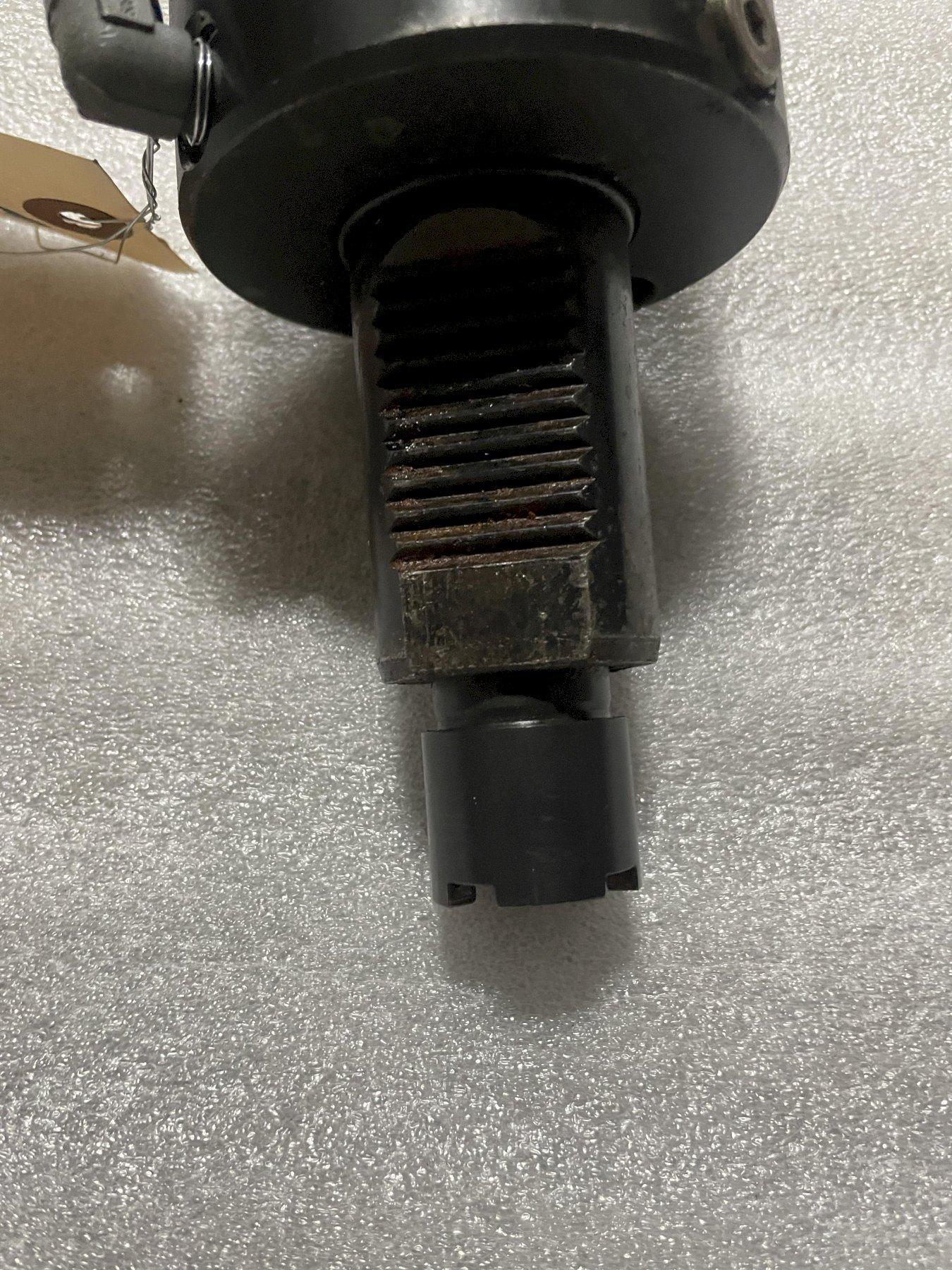

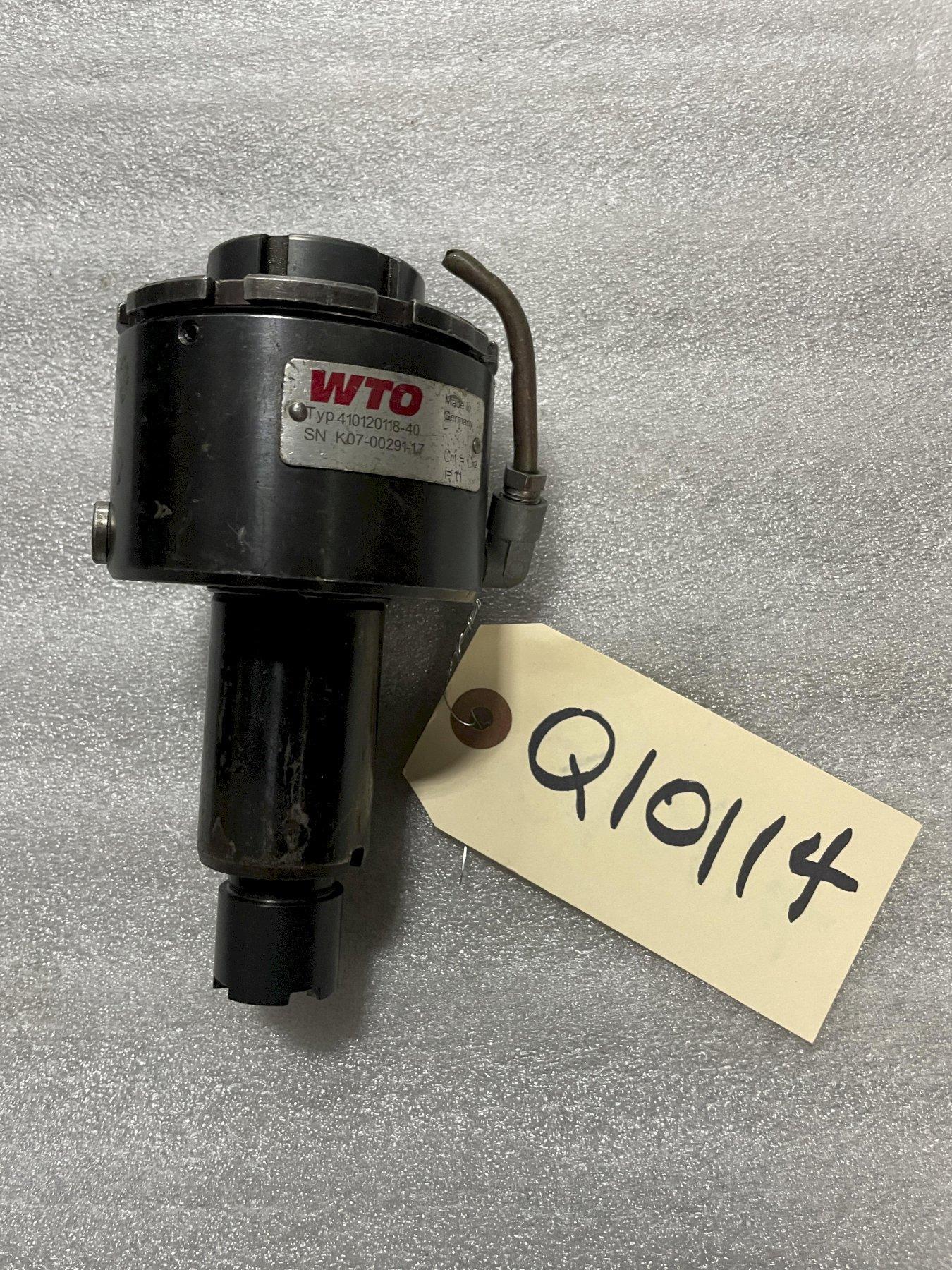

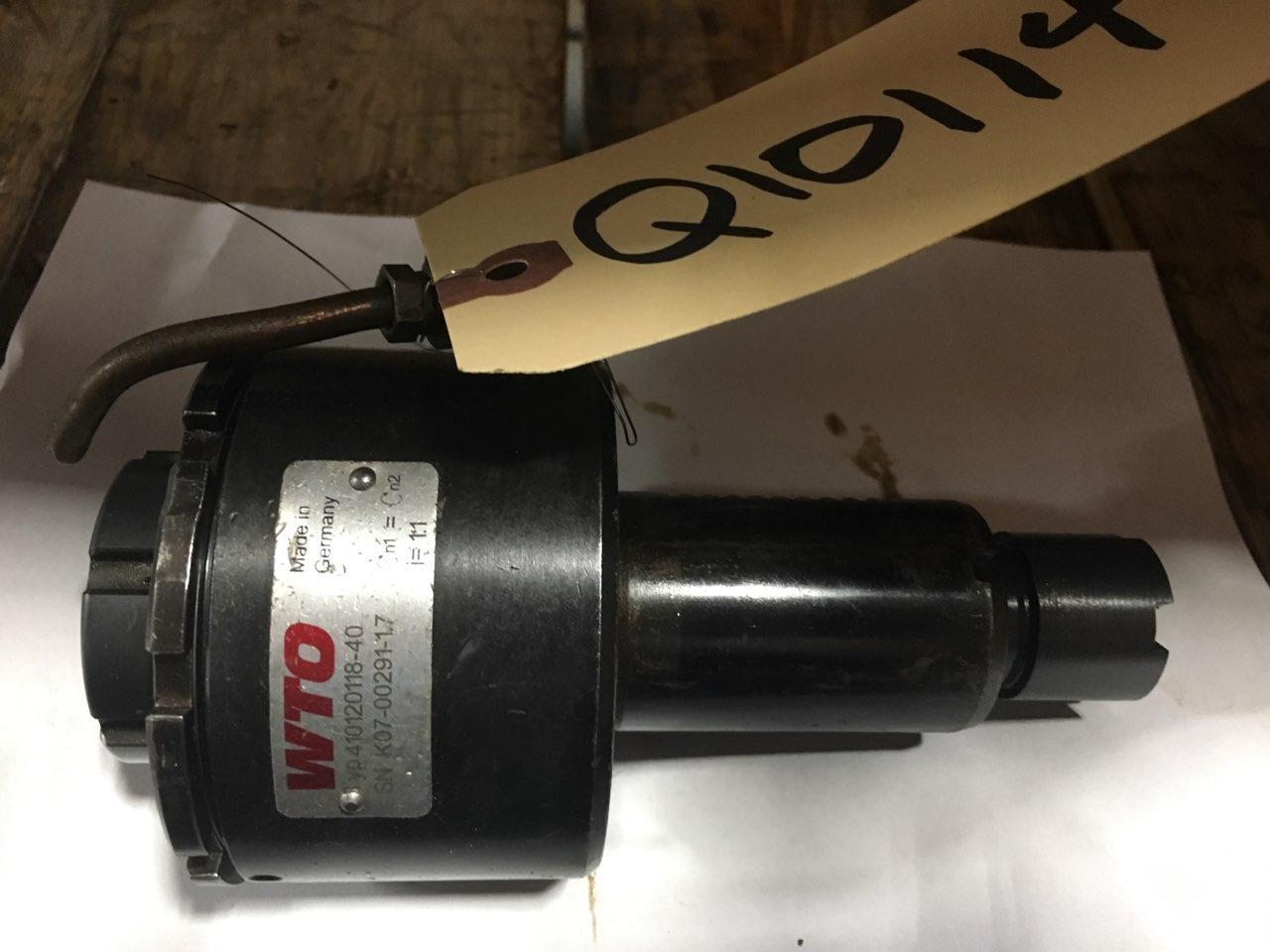

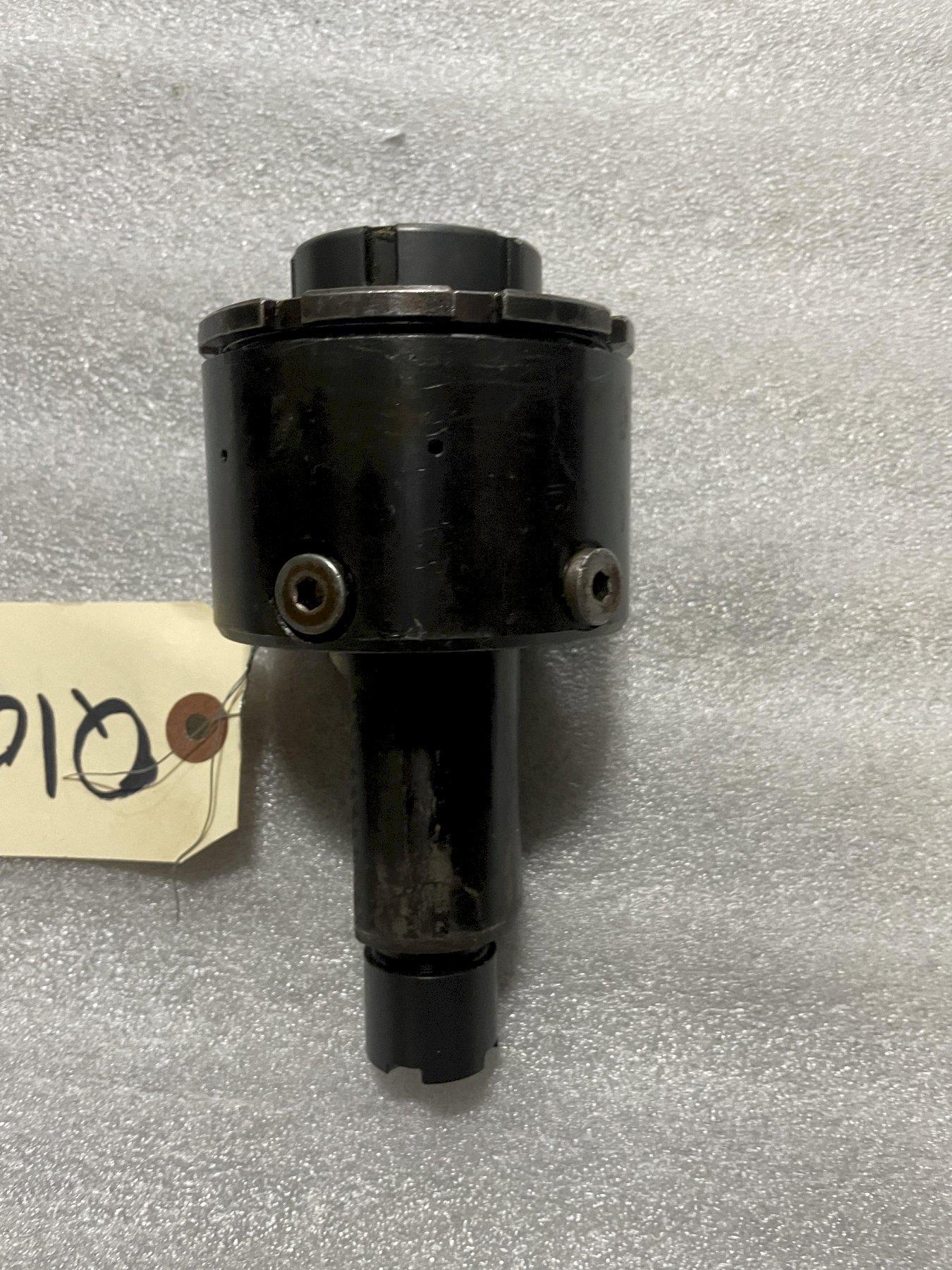

WTO LIVE TOOL TYPE 410120118-40

Stock #: Q10114

Brand: WTO
Model: 410120118-40
Type: Tool Holders
Condition: Very Good
Year: Not Specified

Equipped With:




Machine References:
Okuma Captain L370 M
Okuma ES L10 M
Okuma GENOS L300, L3000-e M/MY (VDI40)
Okuma GENOS L300 MW/MYW (VDI40)
Okuma LB/LU 300, 3000 M (VDI40)
Okuma LB 300 MW (Radial tooling turret)
Okuma LB/LU 300 MY
Okuma LB 300 MYW
Okuma LT 300 M, LT 300 MY
Okuma LVT 300 M
Okuma MacTurn 250-2S
Okuma MacTurn 350-2S

Specifications:

Type of Holder Straight drill/milling unit
Type of Taper OK40A
Live / Static Live
Projection 78 mm
Through Coolant yes
Max Speed 6,000 RPM
Torque 63 Nm
Tool Clamping ER 32
Machine Mount VDI40
Approximate Dimensions 6" x 6"
Approximate Height 9"
Approximate Weight 8 LBS
CONDITION: This Tool Holder Appears to be in Very Good Condition !
