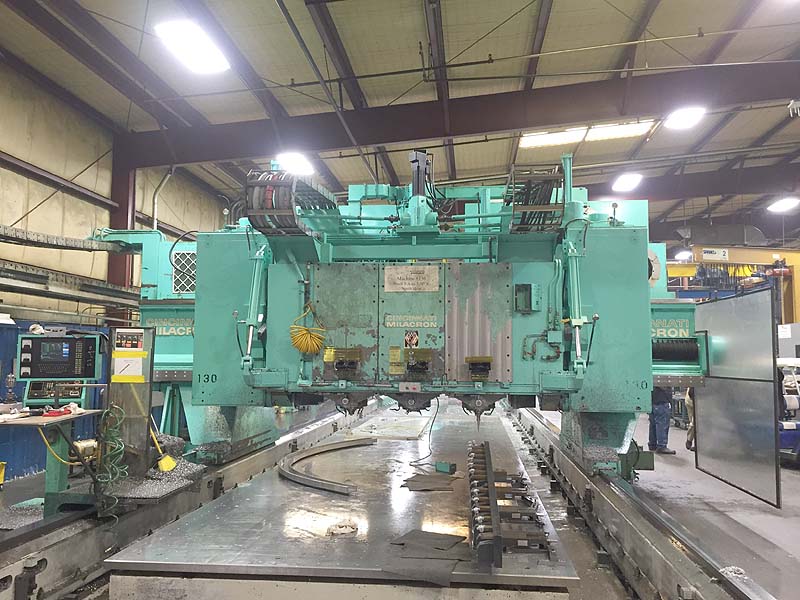

CINCINNATI MILACRON 5-AXIS 3-SPINDLE GANTRY PROFILER

Stock #: K15616

Brand: CINCINNATI
Model: -
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 2017

Equipped With:

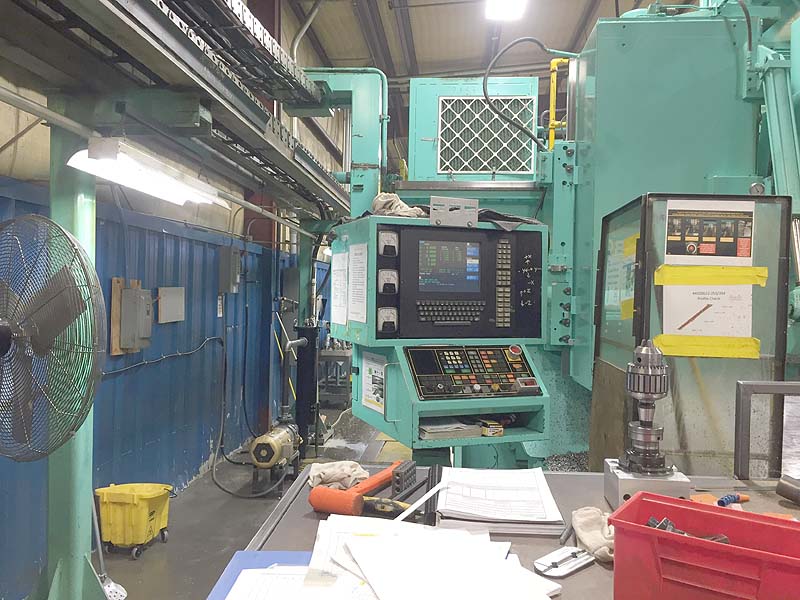

CNC Control……………. Acramatic 950 CNC
# Axis……………… 5
Table-L.............................................. 120"
Table-W.............................................. 744"
X-Axis Rail Length...................................... 852"
Gantry Travel on Bed (X-Axis)........................... 744"
Cross Travel (Y-Axis) .................................. 64"
Vertical Travel (Z-Axis) ............................... 28"
Spindle Tilt (A-Axis) .................................. ±25°
Spindle Carrier Tilt (B-Axis) .......................... ±25°
Distance Between Spindles............................... 30"
Max Clearance Tabletop to Spindle Nose........... 33"
Min Clearance Tabletop to Spindle Nose........... 5"
Rapid Traverse, All Axes ............................... 400 IPM
Spindle Power...................................... 60 HP ea
Spindle Speed Range..................................... 20 - 3,600 RPM
Spindle Taper .......................................... #50 Taper
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ............... 1200" x 188" x 208"
Approximate Machine Weight ............................. 250,000 LBS



CONDITION: This Machine Appears to be in Excellent Condition! From a Prestigious Aerospace Company!
