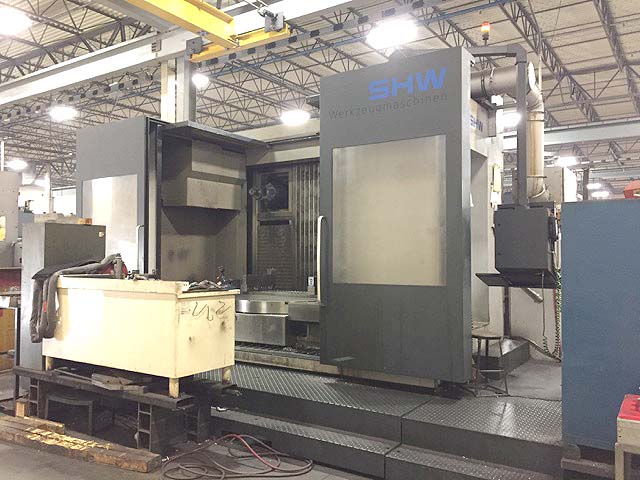

SW WERKZEUGMASCHINEN 5-AXIS VERTICAL / HORIZONTAL MACHINING CENTER

Stock #: K15710

Brand: SHW
Model: UniSpeed 6
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 2014

Equipped With:

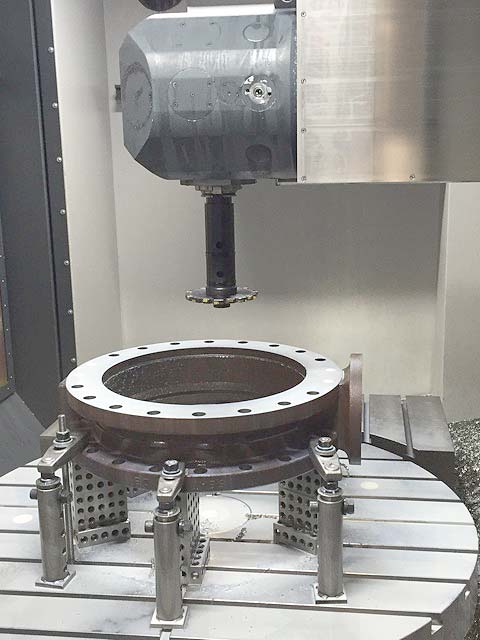

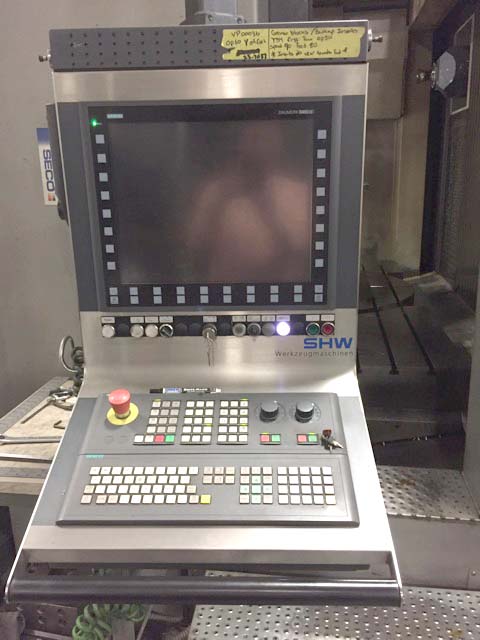

Siemens 840D CNC Control, RS-232 Port, Multiple Program Storage, Full Contouring 62" 4th Axis Rotary Table, 5-Axis Tilt and Swivel Spindle, Heavy Duty Cat 50 Taper Spindle, Spindle Chiller, 90 Station Automatic Tool Changer, Chip Conveyor & Coolant System.

SPECIFICATIONS:
Table Size............................................... 118" x 62"

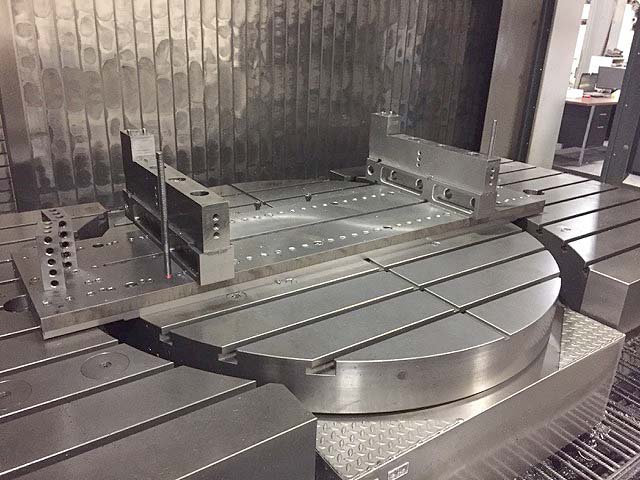

Rotary Table Size........................................ 62"
Table Load Capacity...................................... 12,000 lbs
Rotary Table Positions (B-Axis).......................... 360,000
Milling Head Swivel (C-Axis)............................. 350 Degree
Milling Head Tilt (A-Axis)............................... 180 Degree
Longitudinal Column Travel  (X-Axis)..................... 118"
Vertical Travel (Z-Axis)................................. 51"
Cross Travel of Ram(Y-Axis).............................. 51"
Spindle Taper............................................ #50
Spindle Speeds........................................... 60 to 6000 RPM

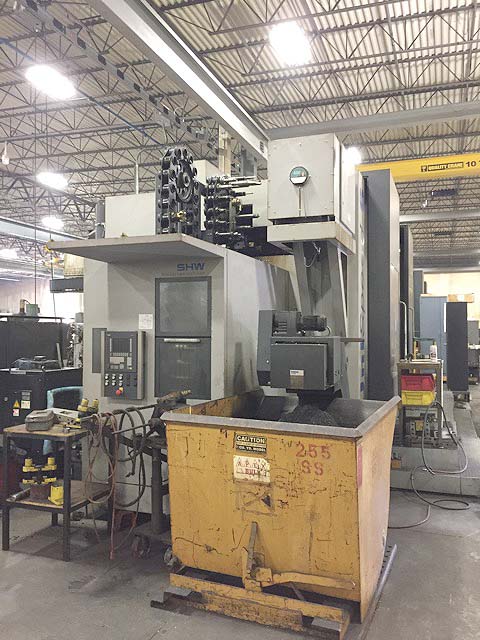

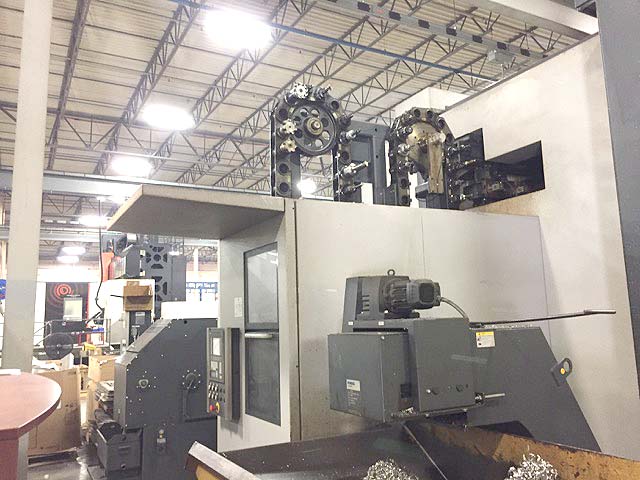

Tool Changer Capacity.................................... 90 Tools
Electrics................................................ 480/3/60
Approximate Machine Dimensions Assembled................. 200" x 221"
Approximate Machine Height............................... 144"
Approximate Machine Weight............................... 80,000 lbs


CONDITION: Machine Appears to be in Excellent Condition!
