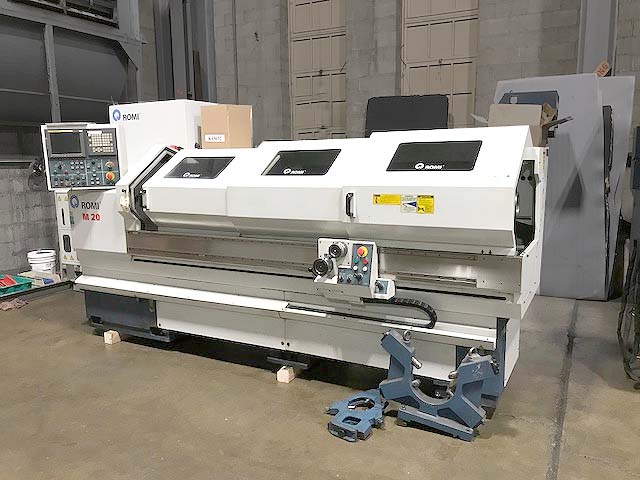

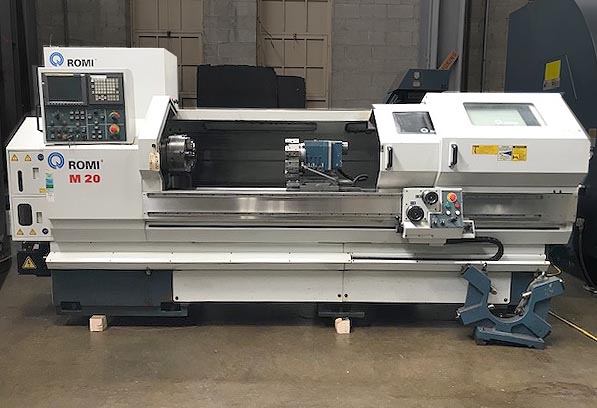

ROMI M20 FLAT BED CNC/MANUAL LATHE

Stock #: K15632

Brand: ROMI
Model: M20
Type: Lathes, Flat Bed, CNC
Condition: Very Good
Year: 2006

Equipped With:

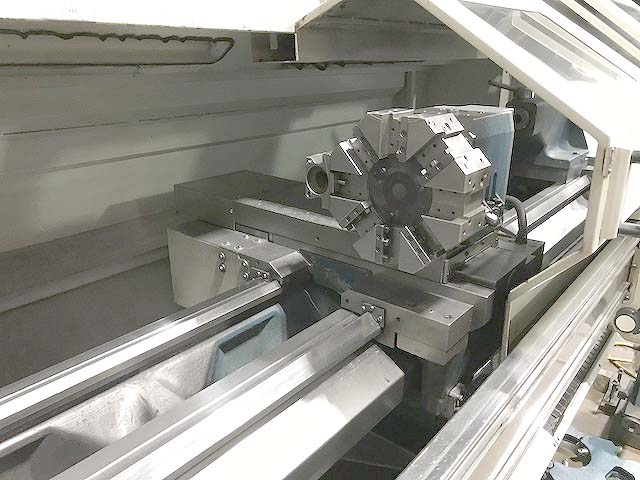

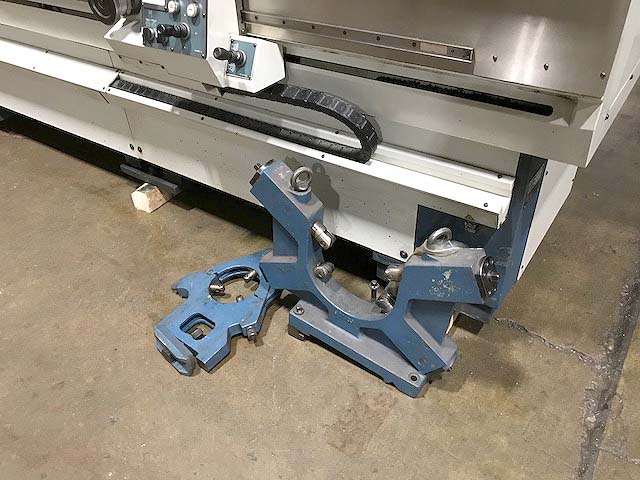

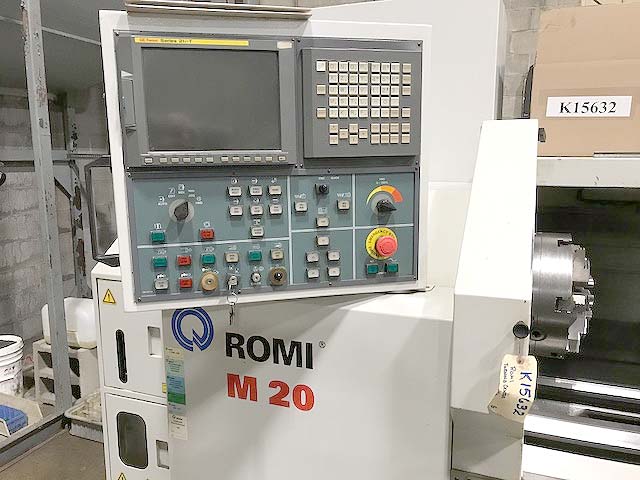

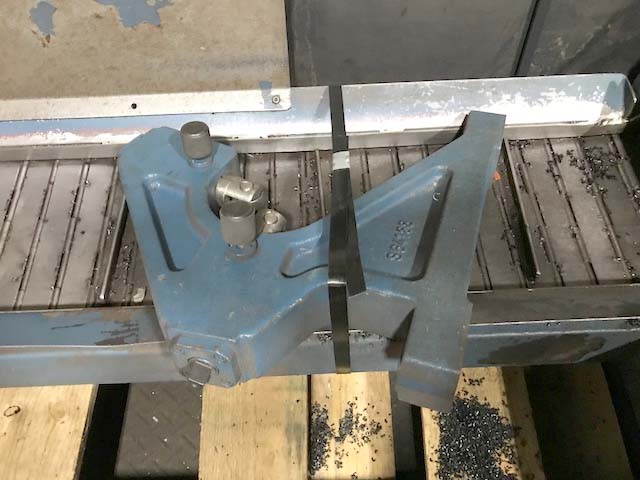

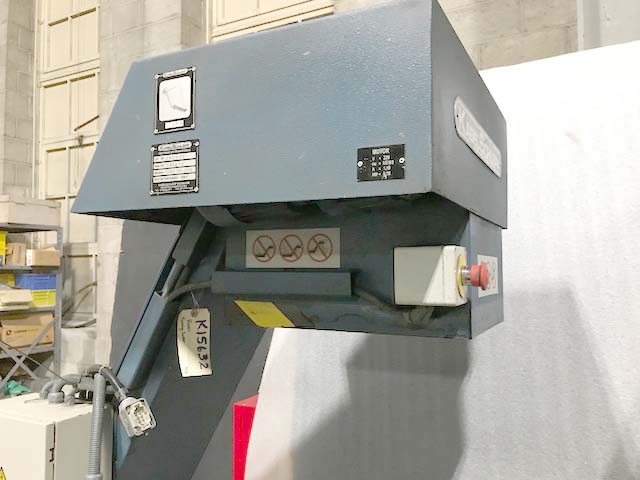

Fanuc 21i-T CNC Control with Manual Guidance, Conversational, G-Code and Teach Modes, (2) MPG Handwheels for Manual Operation, Inch/Metric Programming, RS-232 Port, Variable Speed Spindle Between (2) Gear Ranges, Programmable Constant Surface Speed, 8-Position Tool Turret, 12" 6-Jaw Chuck, Tailstock with Manual Quill, (2) Steady Rests, Follow Rest, Chip Conveyor, Coolant Pump and Tank.

Specifications:

CNC Control yes
Type of CNC Control Fanuc 21i-T CNC Control
Max Swing Over Bed 20.6"
Max Swing Over Carriage 10.2"
Chuck Size 12"
Max Tailstock Position 87.73"
Max Distance Between Centers 80"
X-Axis (Cross Travel) 11.17"
Z-Axis (Longitudinal Travel) 80.78"
Feed Range (Infinitely Variable) .1-394 IPM
Spindle Nose A2-8
Spindle Bore 3"
Spindle Speed Range 2 - 2,000 RPM
Spindle Horsepower 15 HP
Tailstock Center #4MT
Electrics 230/3/60
Approximate Machine Dimensions 154" x 78"
Approximate Machine Height 78"
Approximate Machine Weight 8,900 LBS
CONDITION: Machine Appears to be in Very Good Condition !!

ROMI M20 FLAT BED CNC/MANUAL LATHE
