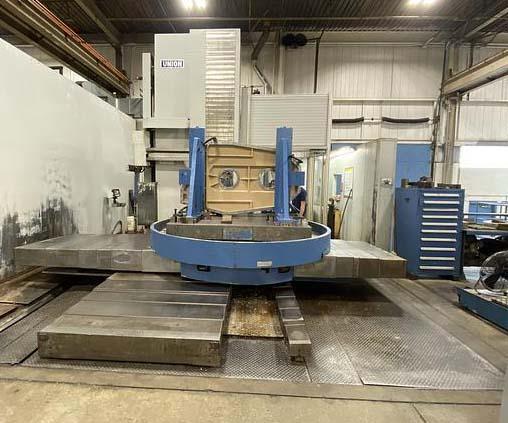

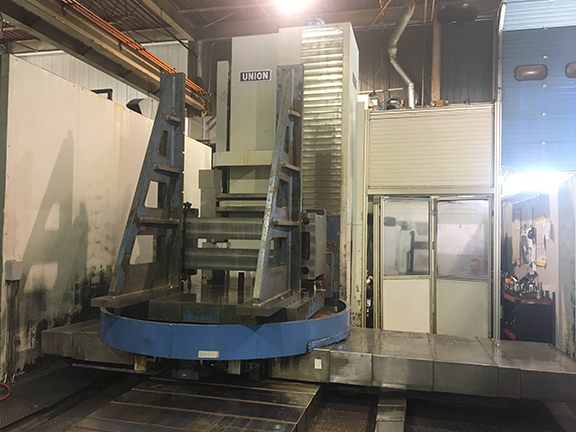

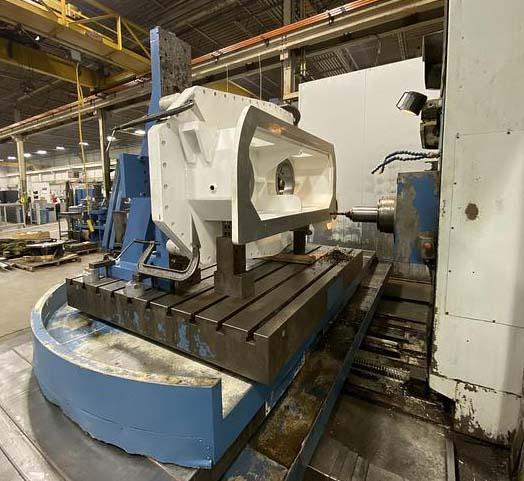

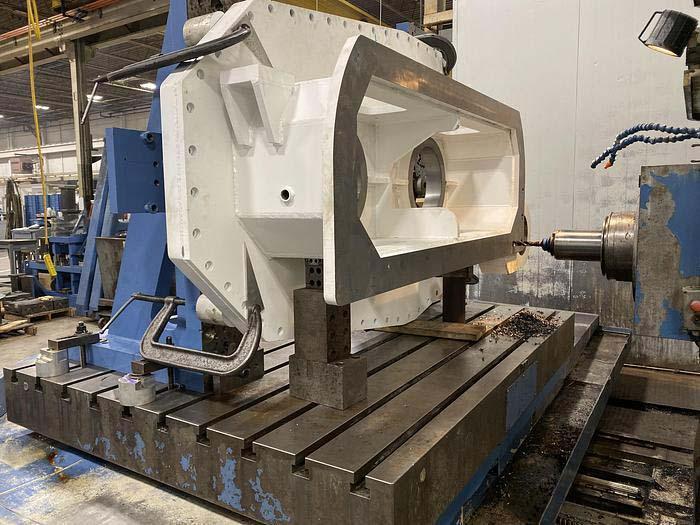

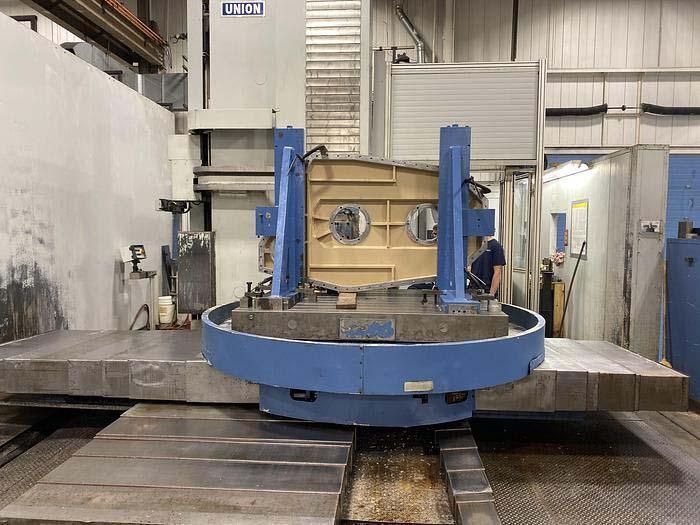

5" UNION CNC HORIZONTAL BORING MILL

Stock #: K15779

Brand: UNION
Model: TC130
Type: Boring Mills, Horizontal, Table Type
Condition: Excellent
Year: 2001

Equipped With:



Heidenhain TNC 426 Control, Multiple Part Program Storage RS-232 Port, 63" x 79" Full Contouring 4th Axis Rotary Table, 60 Station Automatic Tool Changer, Thru Spindle Coolant and Filtration System, Chip Conveyor.

Specifications:
CNC Control yes
Type of CNC Control Heidenhain TNC 426 Control
Table Size 63" x 79"
Table Load Capacity 22,000 LBS
X-Axis (Table Cross Travel) 98"
Y-Axis (Vertical Travel ) 98"
Z-Axis (Spindle (Quill) Travel) 59"
W-Axis (Column Longitudinal Travel) 30"
B-Axis (Rotary Table Positions) .001°
Spindle Diameter 5.1"
Spindle Taper #50
Spindle Horsepower 67 HP
Spindle Speed Range 5 to 3000 RPM
Coolant Thru Spindle yes
Automatic Tool Changer Capacity (ATC) 60
Approximate Machine Weight 65,000 LBS
CONDITION: From High Precision Shop Doing Government Work. This Machine Appears to be in Excellent Condition.

5" UNION CNC HORIZONTAL BORING MILL

5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.
  • 5" UNION CNC Horizontal Boring Mill, Model TC130, Heidenhain TNC426 CNC Control, 63" x 79" Full Contouring Rotary Table, X=98", Y=98",W=59" Z(Quill)=30", 3000 RPM, New 2001.

Share:

Print Details

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      UNION

      Model
      TC130

      Type
      Boring Mills, Horizontal, Table Type

      Stock #
      K15779

      Condition
      Excellent

      Year
      2001

      Request a Quote Today!

      Get Started

      Equipped With

      Heidenhain TNC 426 Control, Multiple Part Program Storage RS-232 Port, 63" x 79" Full Contouring 4th Axis Rotary Table, 60 Station Automatic Tool Changer, Thru Spindle Coolant and Filtration System, Chip Conveyor.

      Specifications
      CNC Control yes
      Type of CNC Control Heidenhain TNC 426 Control
      Table Size 63" x 79"
      Table Load Capacity 22,000 LBS
      X-Axis (Table Cross Travel) 98"
      Y-Axis (Vertical Travel ) 98"
      Z-Axis (Spindle (Quill) Travel) 59"
      W-Axis (Column Longitudinal Travel) 30"
      B-Axis (Rotary Table Positions) .001°
      Spindle Diameter 5.1"
      Spindle Taper #50
      Spindle Horsepower 67 HP
      Spindle Speed Range 5 to 3000 RPM
      Coolant Thru Spindle yes
      Automatic Tool Changer Capacity (ATC) 60
      Approximate Machine Weight 65,000 LBS
      CONDITION: From High Precision Shop Doing Government Work. This Machine Appears to be in Excellent Condition.
